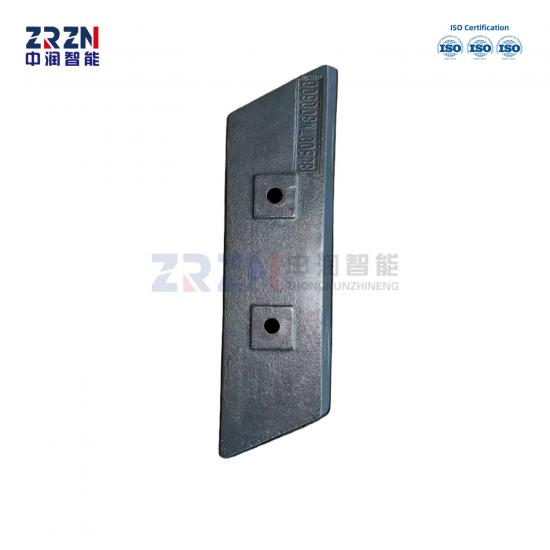

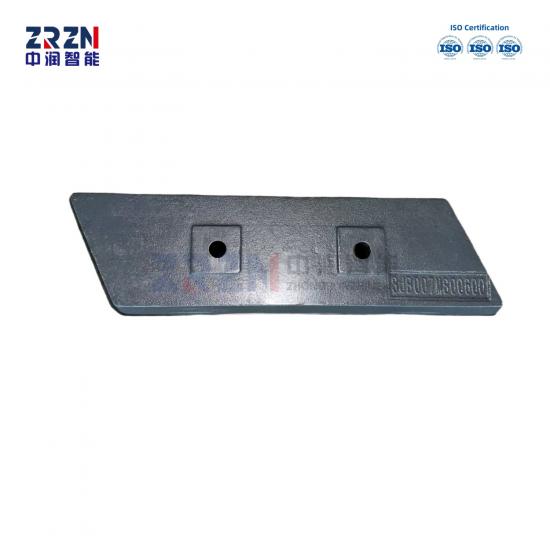

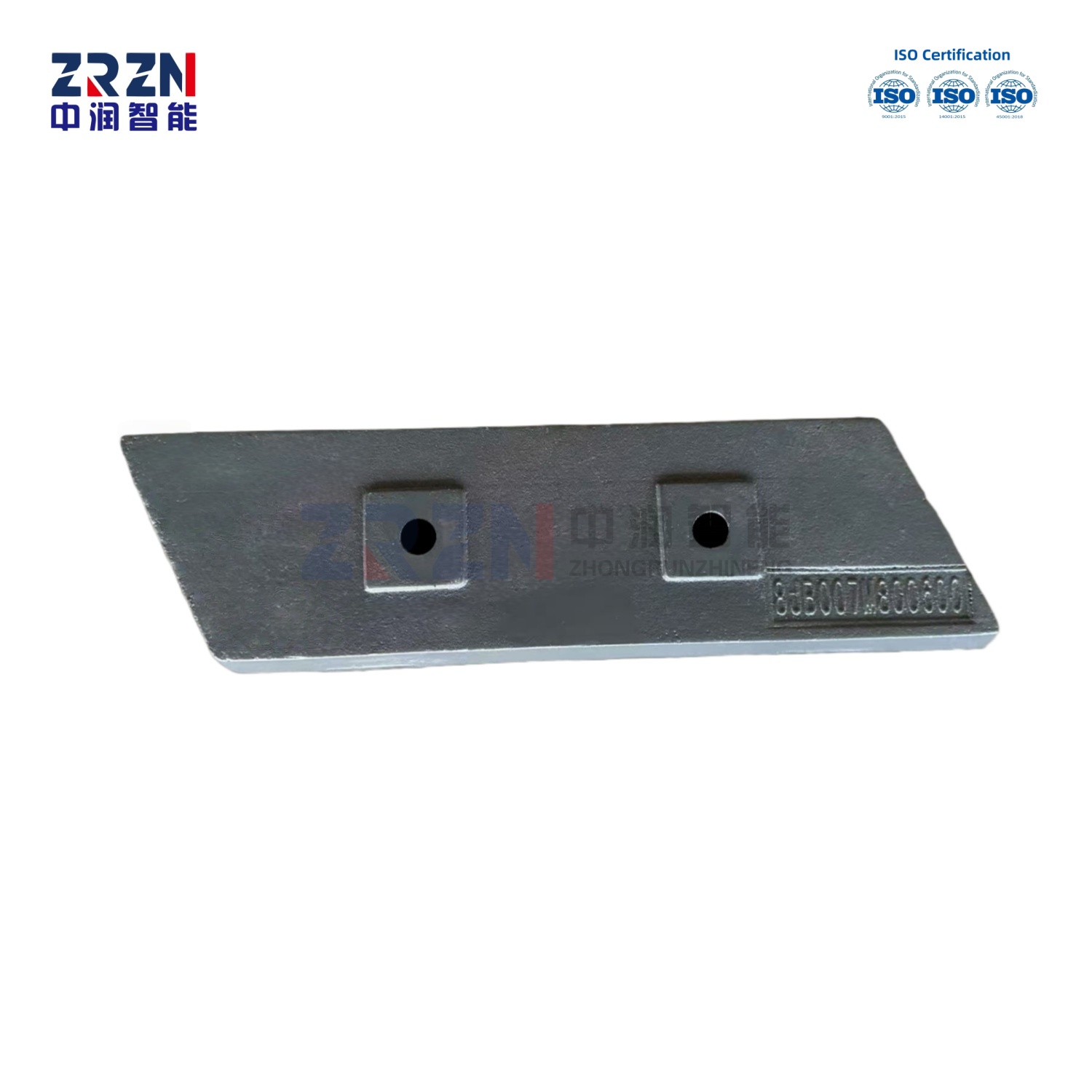

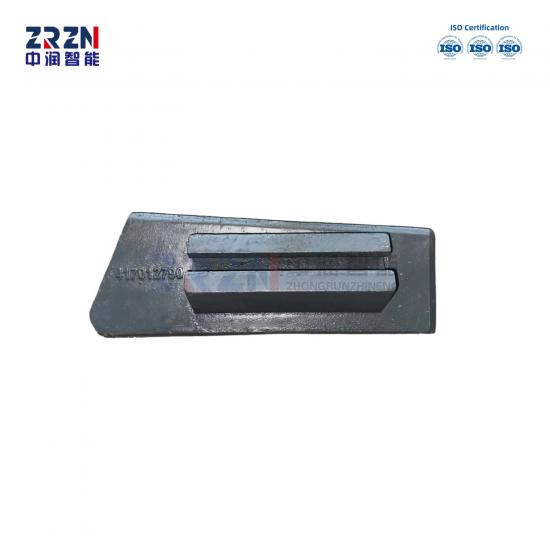

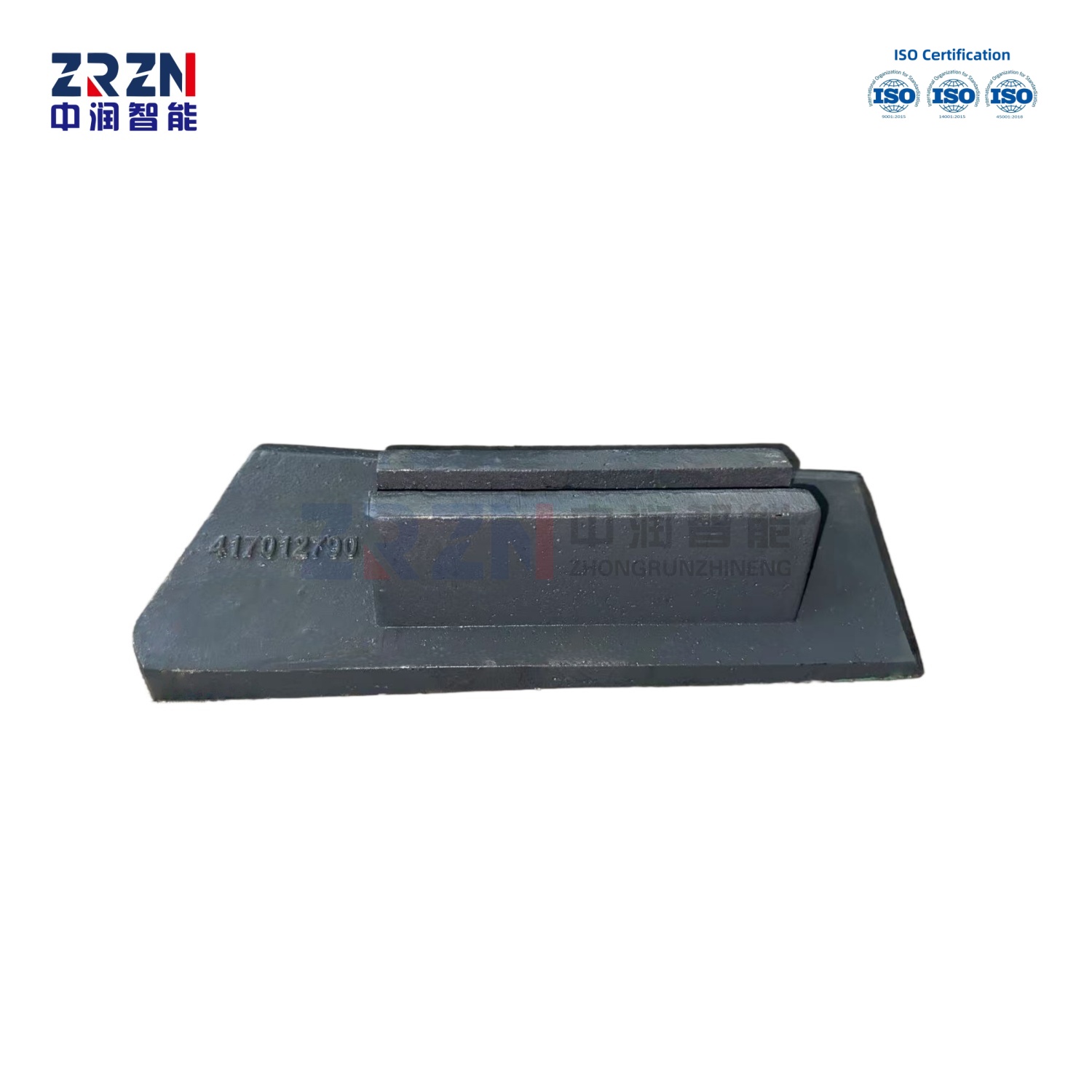

Engineered for WAM and EUROLON concrete mixers, this high-strength scraper is designed to tackle extreme abrasion and material adhesion in demanding mixing environments.
Brand:
WAMOrder(MOQ):
1000kgGoods Stock:
1000Payment:
T/T, L/C, Paypal, Western UnionMarket Price:
$2Price:
$22/1000kgPrice Range:
1000 - 5000/$21Price Range:
5000 - 10000/$20Product Origin:
AnhuiColor:
CustomizedShipping Port:
ShanghaiLead Time:
15-30days| Description： |
Engineered for WAM and EUROLON concrete mixers, this high-strength scraper is designed to tackle extreme abrasion and material adhesion in demanding mixing environments. Manufactured through ISO 9001-certified processes, each scraper is precision-cast using advanced lost-foam casting (EPC) and vertical flaskless molding technology, achieving a material density of 99.8%. This eliminates micro-porosity and ensures structural integrity under heavy cyclic loads, extending service life by over 50% compared to conventional scrapers. The scraper’s specialized geometry, optimized through computational fluid dynamics (CFD), reduces energy consumption by 18% and minimizes material buildup by 62%, ensuring consistent mixing efficiency and lower operational costs.
Crafted from a proprietary high-chromium alloy with 28-32% chromium content and enhanced with molybdenum and vanadium additives, the scraper delivers a uniform carbide network with a hardness of 58-64 HRC. Independent tests verify a tensile strength of 470 N/mm² and impact toughness of ≥8.0 J/cm², enabling reliable performance under high-impact conditions. The metallographic structure, comprising M7C3 carbides in a tempered martensitic matrix, resists deformation and cracking, while the CNC-machined tolerance of ±0.15mm guarantees seamless compatibility with WAM/EUROLON mixers. Backed by digital lifecycle management and 40+ years of technical expertise, this scraper offers a cost-effective solution for reducing downtime and enhancing productivity in concrete production.
| Features and Advantages |
Advanced Chromium Alloy: High-chromium composition with molybdenum/vanadium additives ensures 57-65 HRC hardness and superior abrasion resistance.
Extended Service Life: Independently verified to withstand over 300,000 cubic meters of concrete mixing, offering 40% longer lifespan than standard blades.
Anti-Adhesion Surface Design: The proprietary wave-pattern surface effectively reduces asphalt material buildup by over 60%, ensuring consistent mixing efficiency and reducing cleaning effort.
Comprehensive Certification: ISO 9001, ISO 45001, ISO14001 certified manufacturing with complete material traceability and technical documentation support.
| Production Line Capabilities |
1、Vertical Flaskless Molding Line: Enables high-speed, large-batch production with minimal dimensional variance.
2、Lost Foam Casting: Delivers complex geometries and smooth surfaces for precise fitment.
3、Medium-Frequency Induction Furnace: Ensures uniform melting of high-chromium alloys (Cr content 15-32%).
| Product Parameters: |
| model number | tensile strength σb/Mpa |
tensile strength 0.2/Mpa |
elongation(%) | Fyi | ||
| new model number | equal old model number | minimum value | minimum value | minimum value | HBS Brinell hardness(BHS) |
main metallographic structure |
| QT400-18 | QT40-17 | 400 | 250 | 18 | 130-180 | ferritle |
| QT400-15 | - | 400 | 250 | 15 | 130-180 | ferritle |
| QT450-10 | QT42-10 | 450 | 310 | 10 | 160-210 | ferritle |
| QT500-7 | QT50-5 | 500 | 320 | 7 | 170-230 | ferritle+pearlite |
| QT600-3 | QT60-2 | 600 | 370 | 3 | 190-270 | pearlite+ferritle |
| QT700-2 | QT70-2 | 700 | 420 | 2 | 225-305 | pearlite |
| QT800-2 | QT80-2 | 800 | 480 | 2 | 245-335 | pearliteor tempered structure |
| QT900-2 | - | 900 | 600 | 2 | 280-360 | bainite or tempered martensite |
| Chemical composition(Mass fraction)(%) | |||||||||
| C | Si | Mn | Cr | Mo | Ni | Cu | S | P | |
| KmTBN14Cr2-DT | 2.4~3.0 | ≤0.8 | ≤2.0 | 1.5-3.0 | ≤1.0 | 3.3~5.0 | - | ≤0.10 | ≤0.15 |
| KmTBN14Cr2-GT | 3.0~3.6 | ≤0.8 | ≤2.0 | 1.5-3.0 | ≤1.0 | 3.3~5.0 | - | ≤0.15 | ≤0.15 |
| KmTBCr9Ni5 | 2.5~3.6 | ≤2.0 | ≤2.0 | 7.0-11.0 | ≤1.0 | 4.5~7.0 | - | ≤0.15 | ≤0.15 |
| KmTBCr2 | 2.1~3.6 | ≤12 | ≤2.0 | 1.5~3.0 | ≤1.0 | ≤1.0 | ≤1.2 | ≤0.10 | ≤0.15 |
| KmTBCr8 | 2.1~3.2 | 1.5~2.2 | ≤2.0 | 7.0~11,0 | ≤1.5 | ≤1.0 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmlBCr12 | 2.0~3.3 | ≤1.5 | ≤2.0 | 11.0~14.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr15Mo | 2.0~3.3 | ≤1.2 | ≤2.0 | 14.0~18.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr20Mo | 2.0~3.3 | ≤1.2 | ≤2.0 | 18.0~23.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr26 | 2.0~3.3 | ≤1.2 | ≤2.0 | 23.0~30.0 | ≤3.0 | ≤2.5 | ≤2.0 | ≤0.06 | ≤0.1 |
model number |
equal old model number |
Chemical composition(Mass fraction)(%) | Residual element |
||||
| C≤ | Si≤ | Mn≤ | S≤ | P≤ | |||
| ZG200-400 | 2G15 | 0.20 | 0.50 | 0.80 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG230-450 | ZG25 | 0.30 | 0.50 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG270-500 | ZG35 | 0.40 | 0.50 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG310-570 | 2G45 | 0.50 | 0.60 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG340-640 | ZG55 | 0.60 | 0.60 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| Packaging & Shipment |
| FAQ |
1.Q: Could you introduce your company’s business nature and production qualifications?
A: A: We are a professional manufacturer specializing in high-wear-resistant alloy components. Our in-house casting and machining facilities ensure full control over quality, cost, and lead time.
2.Q: How can I place an order?
A: Simply share your requirements via email or through our online system. We’ll promptly prepare a proforma invoice (PI) with detailed pricing and delivery terms for your confirmation.
3.Q: What core material systems do you utilize?
A: We employ engineered materials such as high-chromium cast iron, ductile cast iron, cast steel, and alloy steel. Material selection is scientifically optimized based on specific operational conditions and performance requirements.
4.Q: What payment methods do you support?
A: We accept international trade settlement methods including T/T and L/C. Flexible payment terms can be negotiated for long-term strategic partners.
5.Q: Do you offer customized branding services?
A: Yes, we provide end-to-end customization solutions covering industrial design, mold development, and product marking.
6.Q: How does your quality assurance system operate?
A: Our facility features professional-grade inspection equipment and a three-stage verification protocol: Incoming material inspection; Batch-specific process quality validation; Pre-shipment certification.
