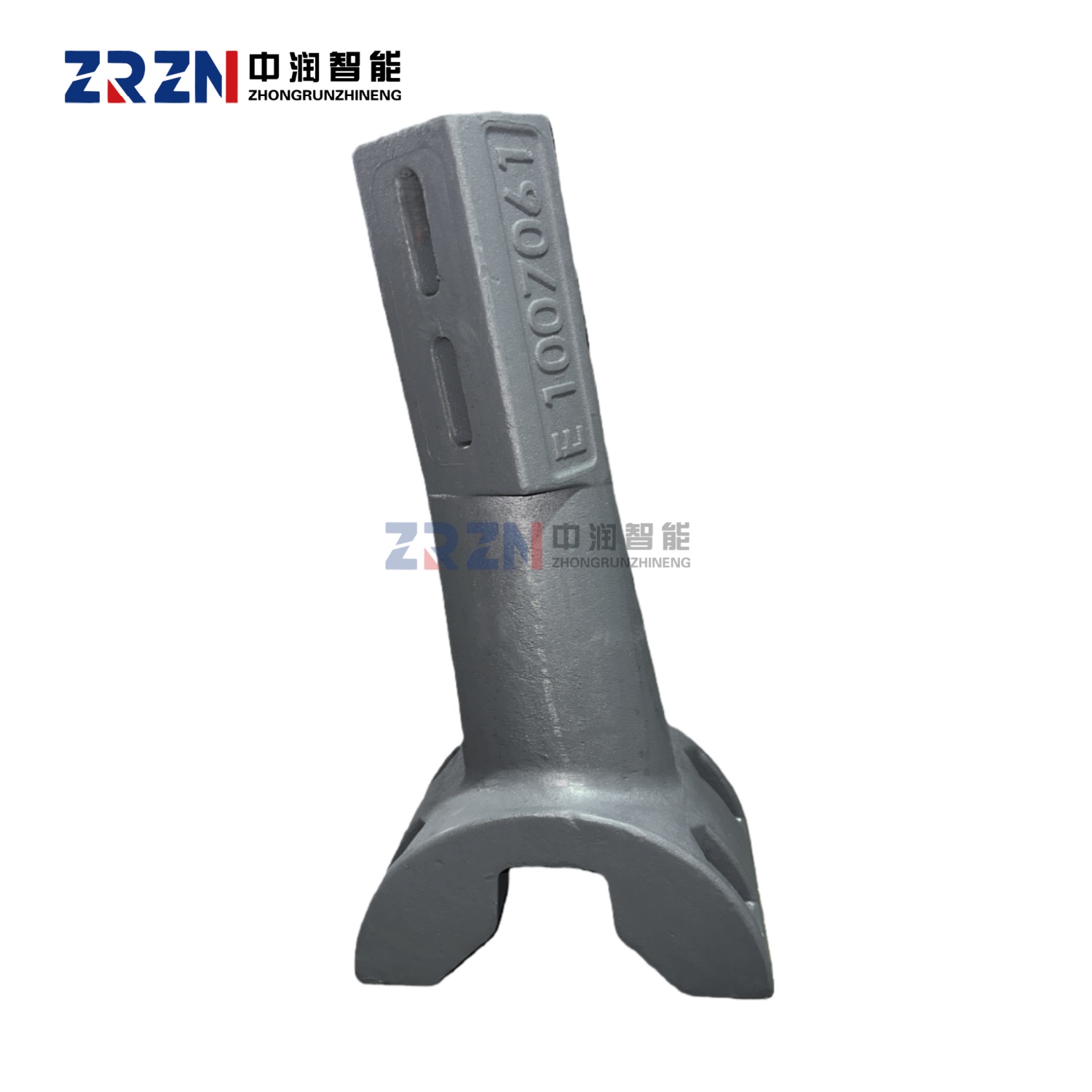

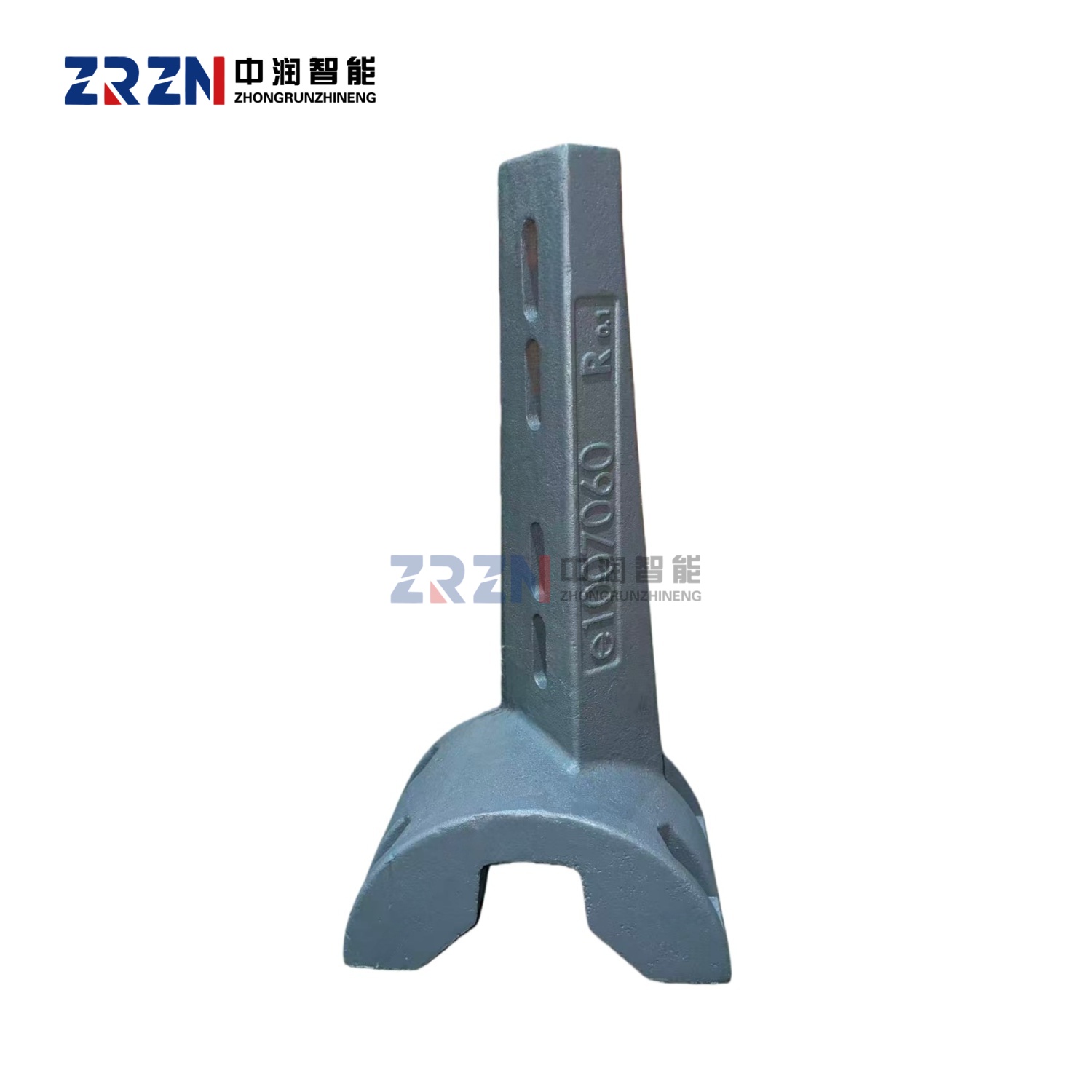

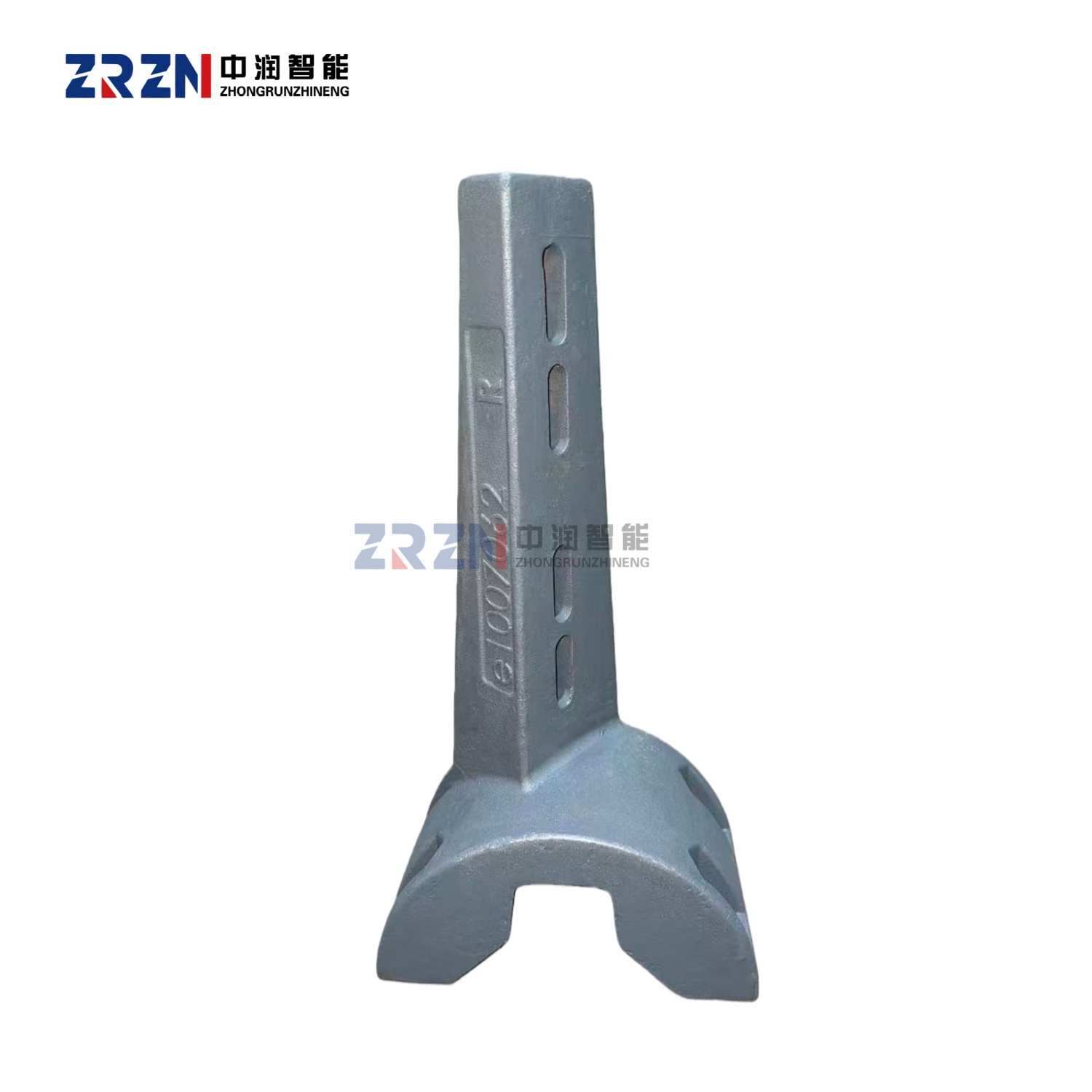

Engineered as the structural backbone for ELKON concrete mixers, our High-Impact Arm Assembly is precision-engineered to withstand extreme torsional and bending stresses in continuous mixing operations.
Brand:
WAMOrder(MOQ):
1000kgGoods Stock:
1000Payment:
T/T, L/C, Paypal, Western UnionMarket Price:
$2Price:
$22/1000kgPrice Range:
1000 - 5000/$21Price Range:
5000 - 10000/$20Product Origin:
AnhuiColor:
CustomizedShipping Port:
ShanghaiLead Time:
15-30days| Description： |
Engineered as the structural backbone for ELKON concrete mixers, our High-Impact Arm Assembly is precision-engineered to withstand extreme torsional and bending stresses in continuous mixing operations. Manufactured through our ISO 9001-certified production system, each assembly integrates components cast via lost-foam (EPC) and vertical flaskless molding technologies, achieving a material density of 99.8% to eliminate internal defects and ensure uniform load distribution. This foundational integrity is critical for maintaining alignment under dynamic loads exceeding 15 kN·m, reducing vibration-induced fatigue by 40% and extending service life beyond 400,000 mixing cycles.
The arm assembly utilizes a multi-alloy composite structure, featuring a high-chromium core (30-33% Cr) reinforced with molybdenum and nickel segments at high-stress junctions. Refined in medium-frequency induction furnaces, this design creates a gradient metallographic structure (M7C3 carbides in tempered martensite) that delivers a balanced hardness profile of 60-66 HRC while achieving an impact toughness of ≥9.2 J/cm². Independent testing validates a flexural strength of 680 N/mm² and tensile strength of 505 N/mm², ensuring resistance to crack propagation under shock loads. These properties enable the assembly to support over 350,000 cubic meters of concrete production with 55% less deformation compared to conventional arms.
Our digital energy management system optimizes the assembly’s geometry through topology analysis, reducing weight by 18% while maintaining structural rigidity. Each unit is CNC-machined to ±0.12mm tolerance for seamless integration with ELKON mixer drives, and undergoes ultrasonic testing to verify weld integrity. Backed by 3D kinematic simulation data and lifecycle monitoring tools, this arm assembly transforms maintenance into a predictive strategy, cutting downtime by 30% and providing a certified solution for heavy-duty batching plants.
| Features and Advantages |
Advanced Chromium Alloy: High-chromium composition with molybdenum/vanadium additives ensures 57-65 HRC hardness and superior abrasion resistance.
Extended Service Life: Independently verified to withstand over 300,000 cubic meters of concrete mixing, offering 40% longer lifespan than standard blades.
Anti-Adhesion Surface Design: The proprietary wave-pattern surface effectively reduces asphalt material buildup by over 60%, ensuring consistent mixing efficiency and reducing cleaning effort.
Comprehensive Certification: ISO 9001, ISO 45001, ISO14001 certified manufacturing with complete material traceability and technical documentation support.
| Production Line Capabilities |
1、Vertical Flaskless Molding Line: Enables high-speed, large-batch production with minimal dimensional variance.
2、Lost Foam Casting: Delivers complex geometries and smooth surfaces for precise fitment.
3、Medium-Frequency Induction Furnace: Ensures uniform melting of high-chromium alloys (Cr content 15-32%).
| Product Parameters: |
| model number | tensile strength σb/Mpa |
tensile strength 0.2/Mpa |
elongation(%) | Fyi | ||
| new model number | equal old model number | minimum value | minimum value | minimum value | HBS Brinell hardness(BHS) |
main metallographic structure |
| QT400-18 | QT40-17 | 400 | 250 | 18 | 130-180 | ferritle |
| QT400-15 | - | 400 | 250 | 15 | 130-180 | ferritle |
| QT450-10 | QT42-10 | 450 | 310 | 10 | 160-210 | ferritle |
| QT500-7 | QT50-5 | 500 | 320 | 7 | 170-230 | ferritle+pearlite |
| QT600-3 | QT60-2 | 600 | 370 | 3 | 190-270 | pearlite+ferritle |
| QT700-2 | QT70-2 | 700 | 420 | 2 | 225-305 | pearlite |
| QT800-2 | QT80-2 | 800 | 480 | 2 | 245-335 | pearliteor tempered structure |
| QT900-2 | - | 900 | 600 | 2 | 280-360 | bainite or tempered martensite |
| Chemical composition(Mass fraction)(%) | |||||||||
| C | Si | Mn | Cr | Mo | Ni | Cu | S | P | |
| KmTBN14Cr2-DT | 2.4~3.0 | ≤0.8 | ≤2.0 | 1.5-3.0 | ≤1.0 | 3.3~5.0 | - | ≤0.10 | ≤0.15 |
| KmTBN14Cr2-GT | 3.0~3.6 | ≤0.8 | ≤2.0 | 1.5-3.0 | ≤1.0 | 3.3~5.0 | - | ≤0.15 | ≤0.15 |
| KmTBCr9Ni5 | 2.5~3.6 | ≤2.0 | ≤2.0 | 7.0-11.0 | ≤1.0 | 4.5~7.0 | - | ≤0.15 | ≤0.15 |
| KmTBCr2 | 2.1~3.6 | ≤12 | ≤2.0 | 1.5~3.0 | ≤1.0 | ≤1.0 | ≤1.2 | ≤0.10 | ≤0.15 |
| KmTBCr8 | 2.1~3.2 | 1.5~2.2 | ≤2.0 | 7.0~11,0 | ≤1.5 | ≤1.0 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmlBCr12 | 2.0~3.3 | ≤1.5 | ≤2.0 | 11.0~14.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr15Mo | 2.0~3.3 | ≤1.2 | ≤2.0 | 14.0~18.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr20Mo | 2.0~3.3 | ≤1.2 | ≤2.0 | 18.0~23.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr26 | 2.0~3.3 | ≤1.2 | ≤2.0 | 23.0~30.0 | ≤3.0 | ≤2.5 | ≤2.0 | ≤0.06 | ≤0.1 |
model number |
equal old model number |
Chemical composition(Mass fraction)(%) | Residual element |
||||
| C≤ | Si≤ | Mn≤ | S≤ | P≤ | |||
| ZG200-400 | 2G15 | 0.20 | 0.50 | 0.80 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG230-450 | ZG25 | 0.30 | 0.50 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG270-500 | ZG35 | 0.40 | 0.50 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG310-570 | 2G45 | 0.50 | 0.60 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG340-640 | ZG55 | 0.60 | 0.60 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| Packaging & Shipment |
| FAQ |
1.Q: Could you introduce your company’s business nature and production qualifications?
A: A: We are a professional manufacturer specializing in high-wear-resistant alloy components. Our in-house casting and machining facilities ensure full control over quality, cost, and lead time.
2.Q: How can I place an order?
A: Simply share your requirements via email or through our online system. We’ll promptly prepare a proforma invoice (PI) with detailed pricing and delivery terms for your confirmation.
3.Q: What core material systems do you utilize?
A: We employ engineered materials such as high-chromium cast iron, ductile cast iron, cast steel, and alloy steel. Material selection is scientifically optimized based on specific operational conditions and performance requirements.
4.Q: What payment methods do you support?
A: We accept international trade settlement methods including T/T and L/C. Flexible payment terms can be negotiated for long-term strategic partners.
5.Q: Do you offer customized branding services?
A: Yes, we provide end-to-end customization solutions covering industrial design, mold development, and product marking.
6.Q: How does your quality assurance system operate?
A: Our facility features professional-grade inspection equipment and a three-stage verification protocol: Incoming material inspection; Batch-specific process quality validation; Pre-shipment certification.
