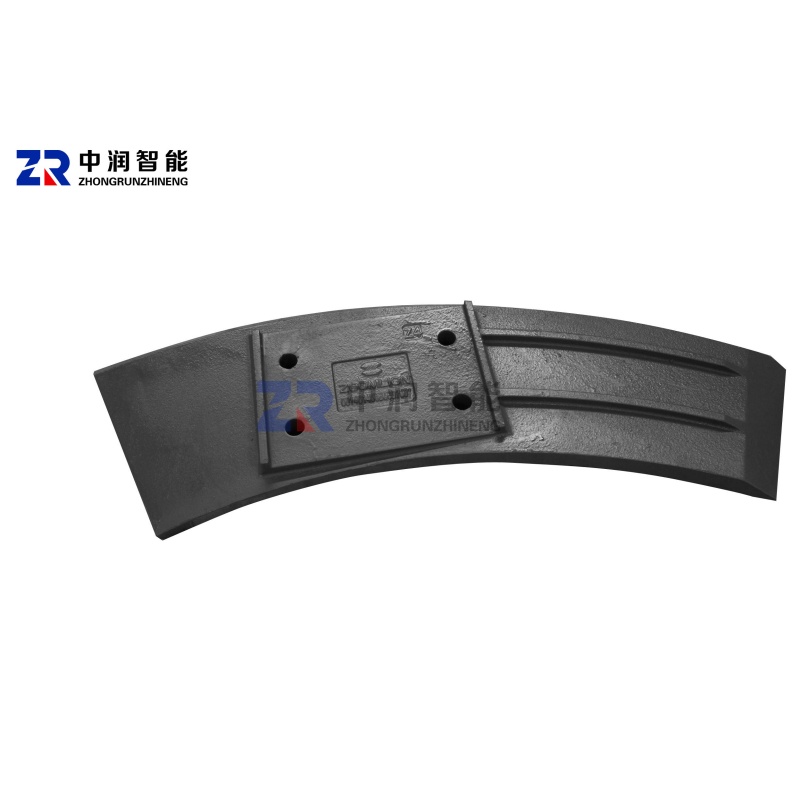

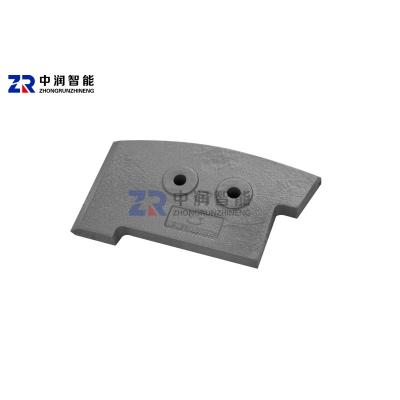

JS4000 Concrete Mixer Wear Parts Arm Set

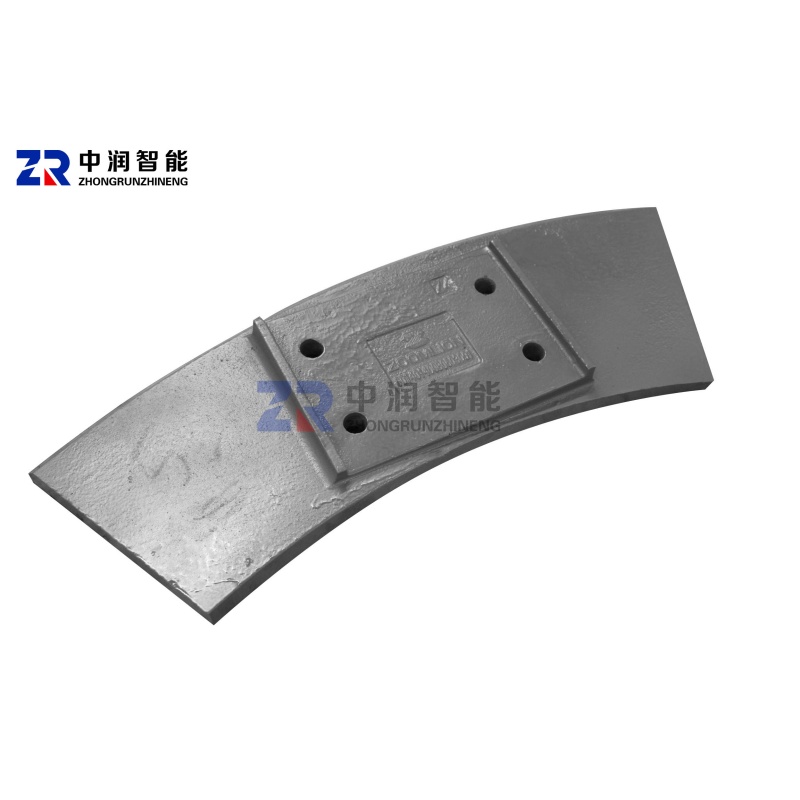

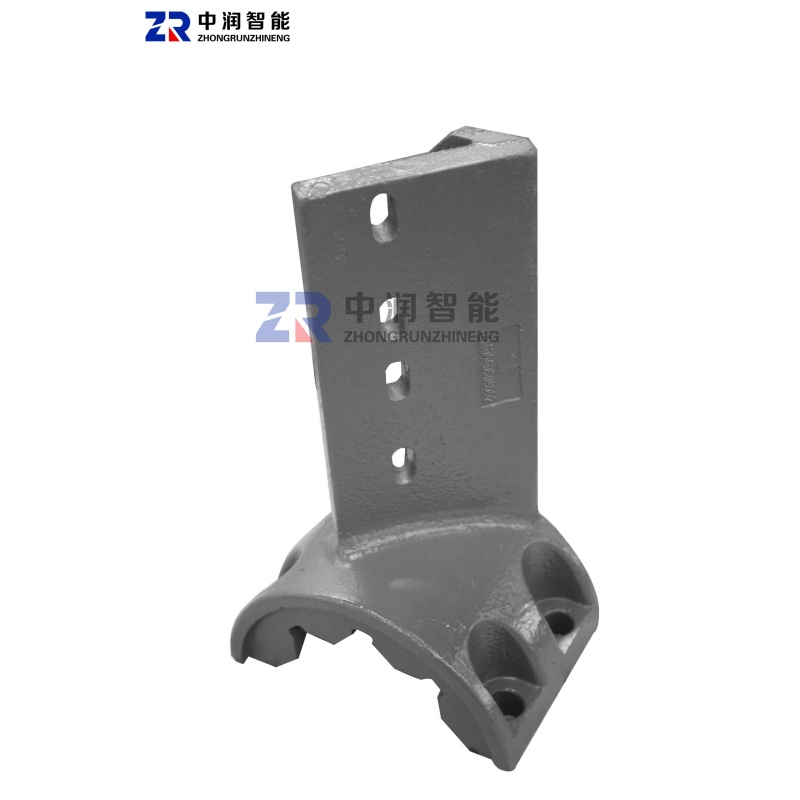

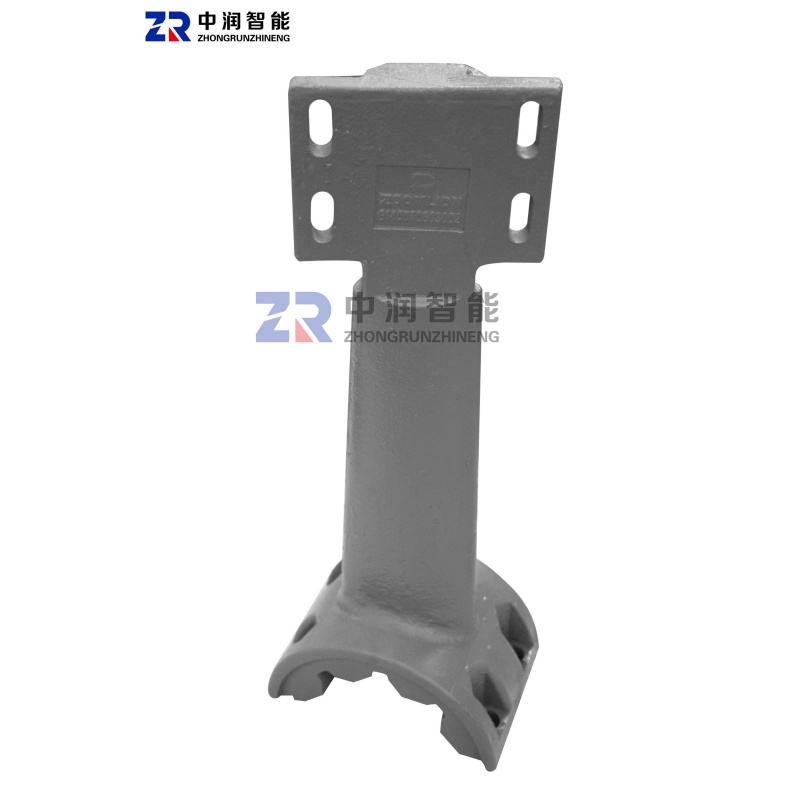

JS4000 Concrete Mixer Mixing Arm-Optimized Profile

Brand:
ZOOMLION
Order(MOQ):
1000kg
Goods Stock:
1000
Payment:
T/T, L/C, Paypal, Western Union
Market Price:
$1.5
Price:
$1.42/1000kg
Price Range:
5000 - 10000/$1.38
Price Range:
1000 - 5000/$1.4
Product Origin:
Anhui
Color:
Customized
Shipping Port:
Shanghai
Lead Time:
15-30days

Inquiry now

Product Details

Description：

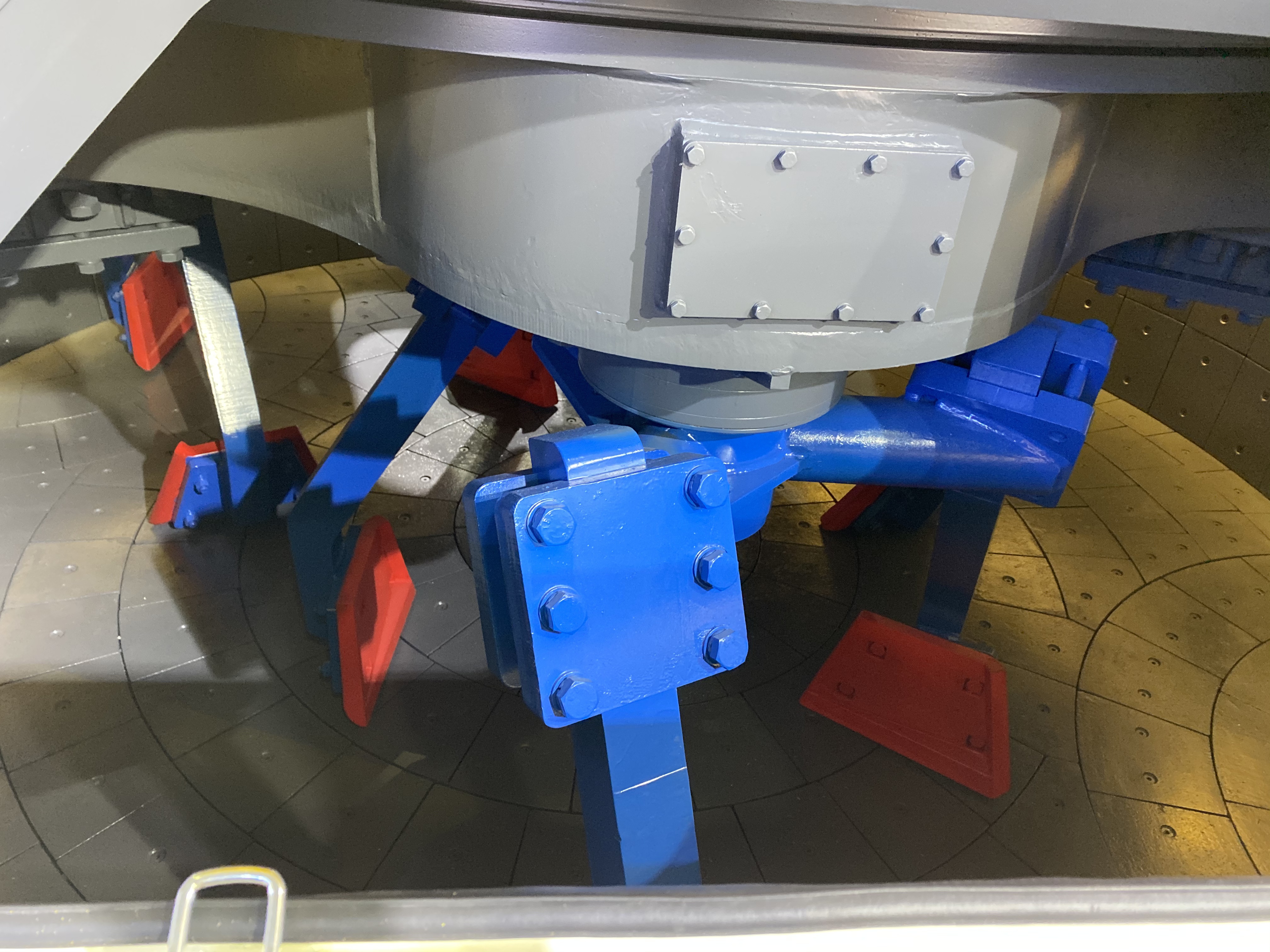

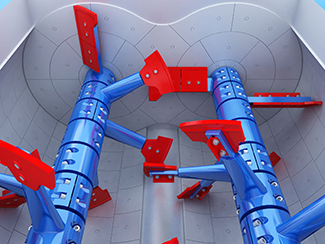

The Zoomlion JS4000 mixing arms—featuring the side-return small arm and large return arm—are masterfully engineered to conquer the toughest concrete mixing challenges. Crafted from ultra-durable, heat-treated chromium-molybdenum alloy steel, these arms combine brute strength with intelligent design to deliver unmatched wear resistance and fatigue performance.The side-return small arm operates with surgical precision, directing material flow toward the mixer’s core to eliminate dead zones and ensure 360° homogenization. Paired with the robust large return arm, which leverages a reinforced, curvature-optimized profile, the system synergistically reduces aggregate impact forces by 30% while maintaining consistent batch quality. Their asymmetrical geometry and hardened surface coatings (up to 62 HRC) slash adhesion risks, even with sticky additives like fly ash or silica fume, ensuring up to 20% longer service life versus conventional designs. Built for mega-scale projects, these arms integrate seamlessly into JS4000 mixers, featuring quick-release bolt slots for tool-free maintenance. Rigorously tested under ISO 9001 standards, Zoomlion’s mixing arms transform reliability into a competitive edge—where every rotation saves time, every mix maximizes ROI, and downtime becomes a relic of the past.

Features and Advantages

Enhanced Mixing Efficiency: Curved surface design optimizes material distribution trajrctories within the mixing drum.

High-Chromium Cast Iron: With an optimized alloy formula, they withstand aggregate impacts and cement slurry abrasion.

Precision Manufacturing: Utilizing lost foam casting technology, critical dimensions are controlled within ±0.5mm tolerance.

OEM-Compatible Fit: Engineered to match Js3000 mixer dimensions for seamless installation.

Extended Lifespan: Dynamic optimization of the alloy formula creates a rational hardness gradient on the mixer arm surface.

Smart Production Ecosystem: End-to-end digital management integrates order tracking, real-time quality control to achieve a closed-loop manufacturing-usage-recycling lifecycle.

Low-Carbon Footprint: Combined with ISO45001-Certified clean production process, carbon footprint per ton of product is reduced by 15%, supporting eco-friendly construction.

Sustainable manufacturing: Employing alloy remelting regeneration technology, over 90% of retired materials are recycled.

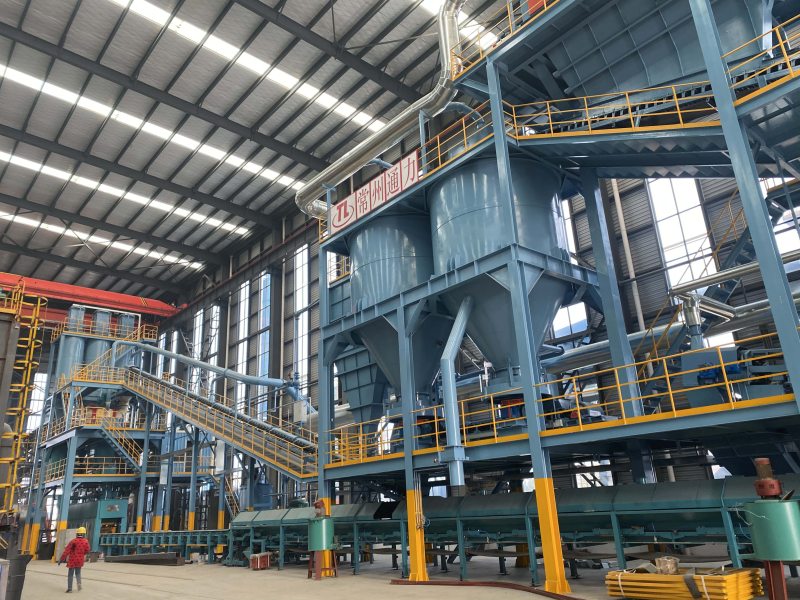

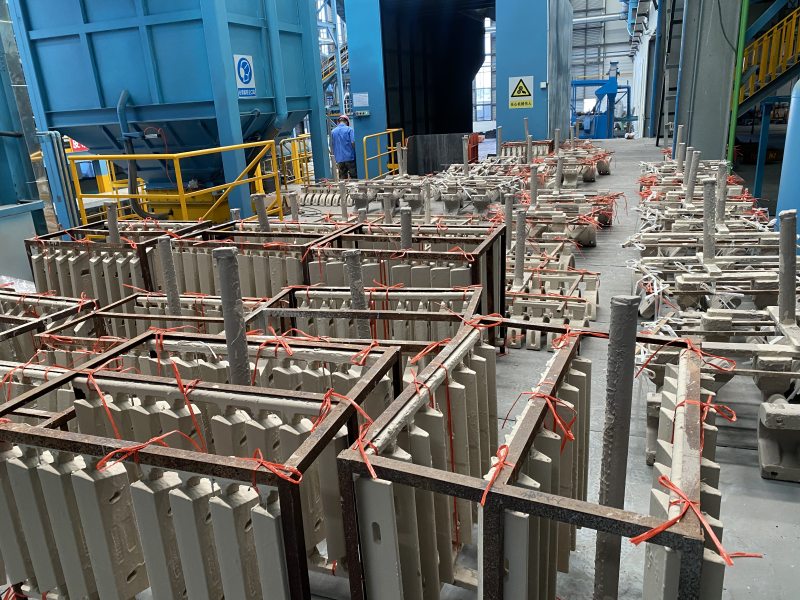

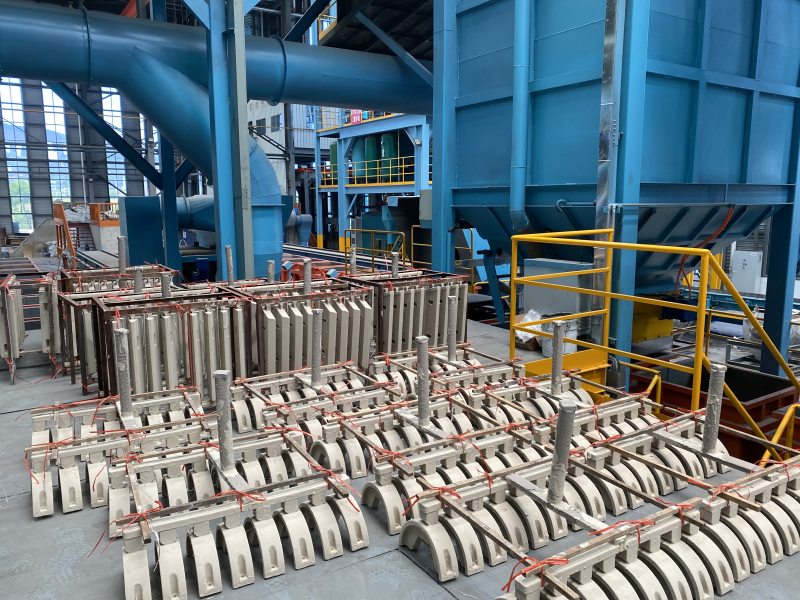

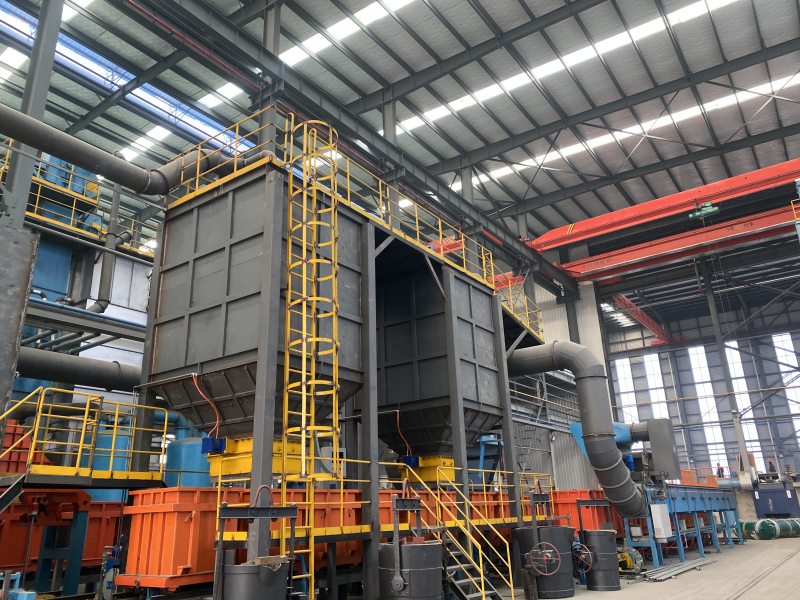

Production Line Capabilities

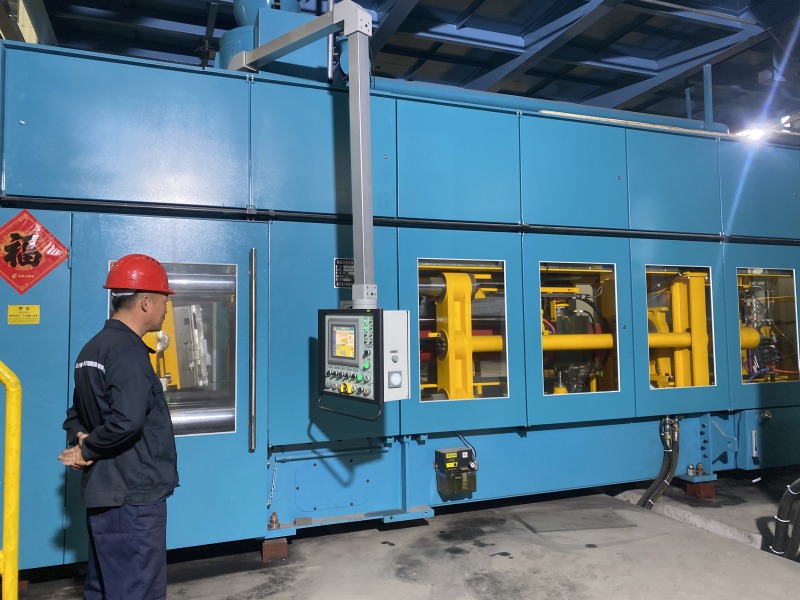

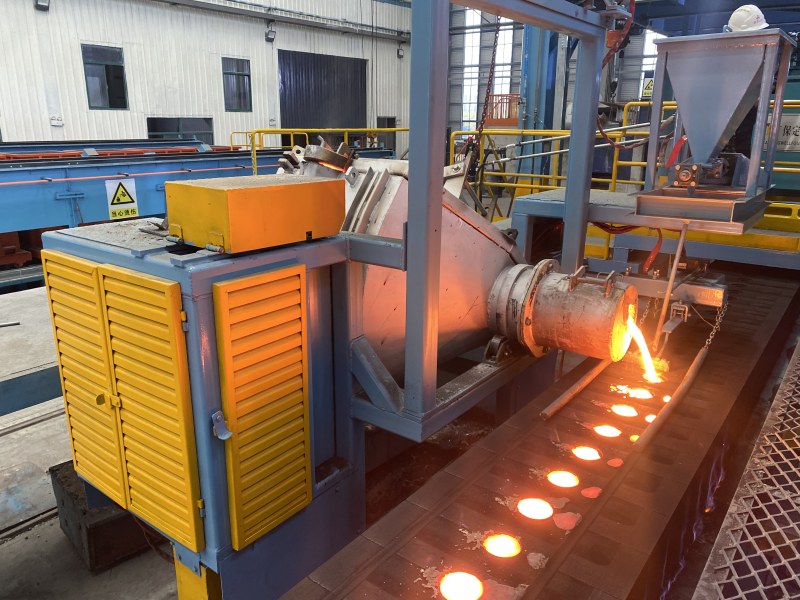

1、Vertical Flaskless Molding Line: Enables high-speed, large-batch production with minimal dimensional variance.

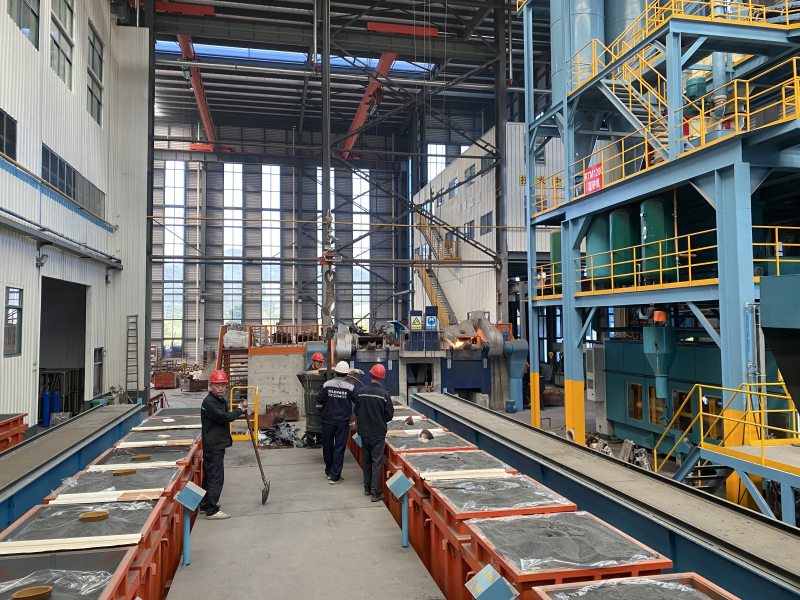

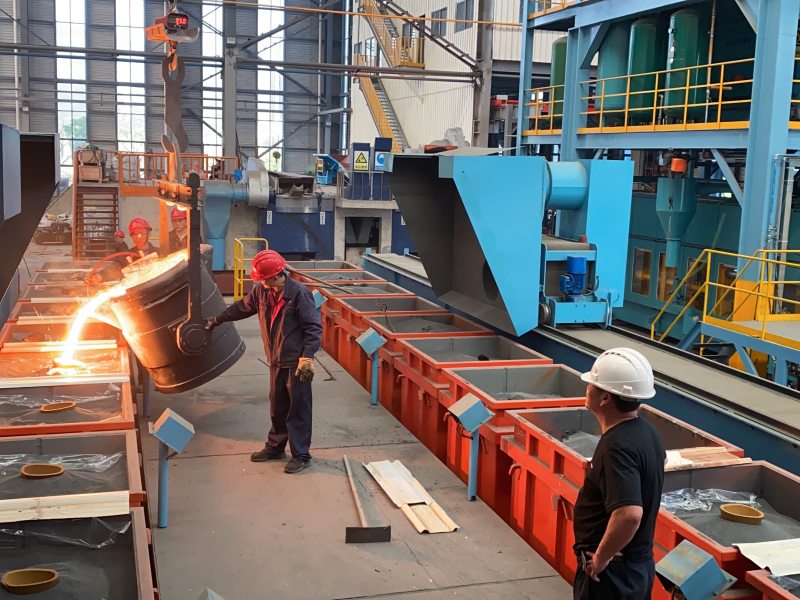

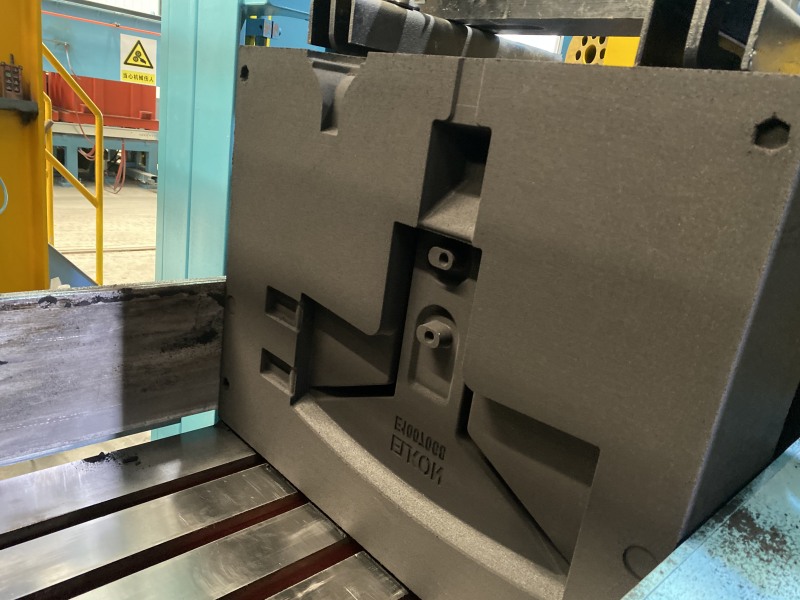

2、Lost Foam Casting: Delivers complex geometries and smooth surfaces for precise fitment.

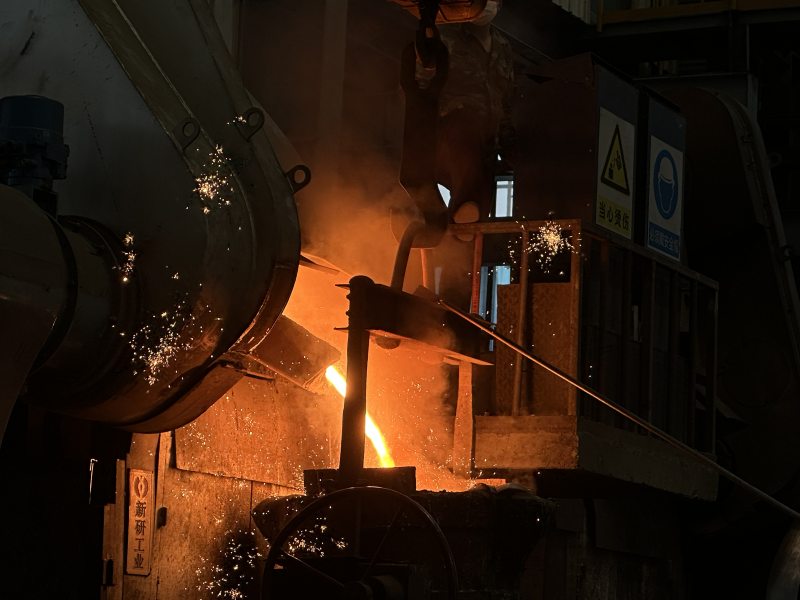

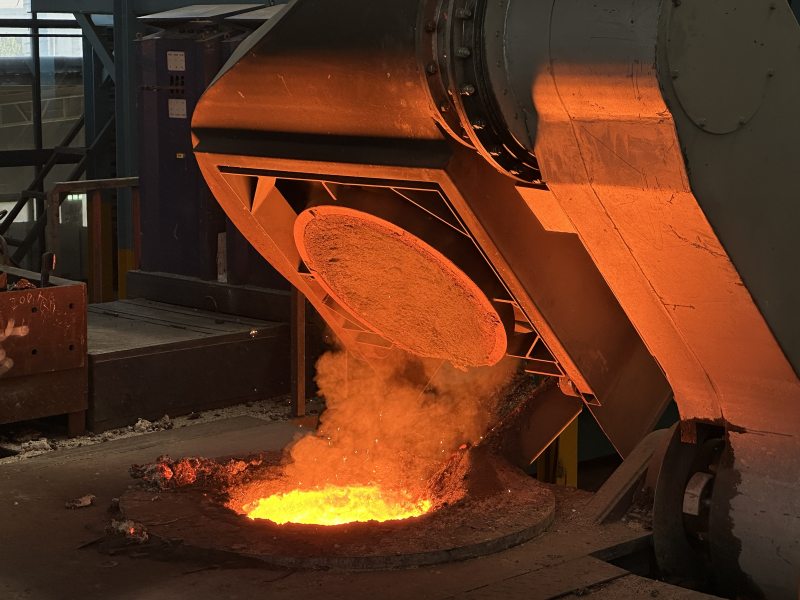

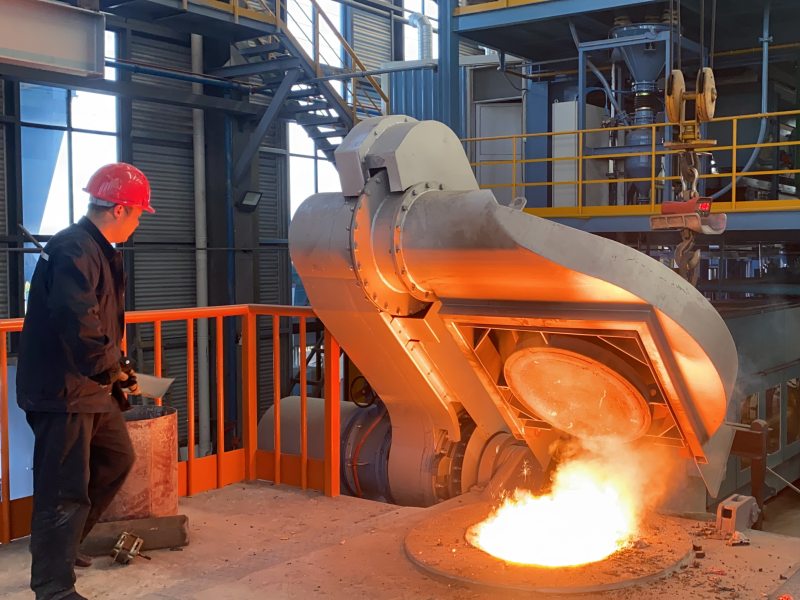

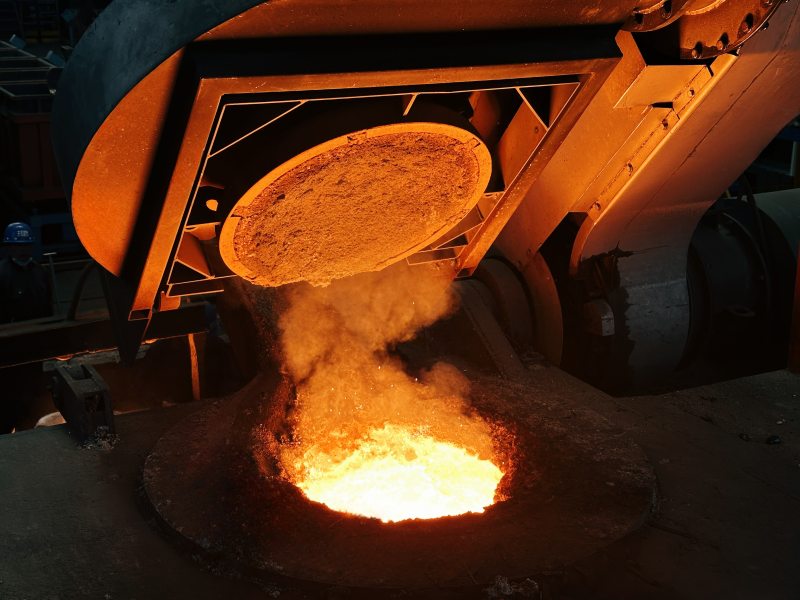

3、Medium-Frequency Induction Furnace: Ensures uniform melting of high-chromium alloys (Cr content 15-28%).

Product Parameters:

model number		tensile strength σb/Mpa	tensile strength 0.2/Mpa	elongation(%)	Fyi
new model number	equal old model number	minimum value	minimum value	minimum value	HBS Brinell hardness(BHS)	main metallographic structure
QT400-18	QT40-17	400	250	18	130-180	ferritle
QT400-15	-	400	250	15	130-180	ferritle
QT450-10	QT42-10	450	310	10	160-210	ferritle
QT500-7	QT50-5	500	320	7	170-230	ferritle+pearlite
QT600-3	QT60-2	600	370	3	190-270	pearlite+ferritle
QT700-2	QT70-2	700	420	2	225-305	pearlite
QT800-2	QT80-2	800	480	2	245-335	pearliteor tempered structure
QT900-2	-	900	600	2	280-360	bainite or tempered martensite

	Chemical composition(Mass fraction)(%)
	C	Si	Mn	Cr	Mo	Ni	Cu	S	P
KmTBN14Cr2-DT	2.4~3.0	≤0.8	≤2.0	1.5-3.0	≤1.0	3.3~5.0	-	≤0.10	≤0.15
KmTBN14Cr2-GT	3.0~3.6	≤0.8	≤2.0	1.5-3.0	≤1.0	3.3~5.0	-	≤0.15	≤0.15
KmTBCr9Ni5	2.5~3.6	≤2.0	≤2.0	7.0-11.0	≤1.0	4.5~7.0	-	≤0.15	≤0.15
KmTBCr2	2.1~3.6	≤12	≤2.0	1.5~3.0	≤1.0	≤1.0	≤1.2	≤0.10	≤0.15
KmTBCr8	2.1~3.2	1.5~2.2	≤2.0	7.0~11,0	≤1.5	≤1.0	≤1.2	≤0.06	≤0.10
KmlBCr12	2.0~3.3	≤1.5	≤2.0	11.0~14.0	≤3.0	≤2.5	≤1.2	≤0.06	≤0.10
KmTBCr15Mo	2.0~3.3	≤1.2	≤2.0	14.0~18.0	≤3.0	≤2.5	≤1.2	≤0.06	≤0.10
KmTBCr20Mo	2.0~3.3	≤1.2	≤2.0	18.0~23.0	≤3.0	≤2.5	≤1.2	≤0.06	≤0.10
KmTBCr26	2.0~3.3	≤1.2	≤2.0	23.0~30.0	≤3.0	≤2.5	≤2.0	≤0.06	≤0.1

model number	equal old model number	Chemical composition(Mass fraction)(%)					Residual element
model number	equal old model number	C≤	Si≤	Mn≤	S≤	P≤	Residual element
ZG200-400	2G15	0.20	0.50	0.80	0.04	0.04	Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00
ZG230-450	ZG25	0.30	0.50	0.90	0.04	0.04	Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00
ZG270-500	ZG35	0.40	0.50	0.90	0.04	0.04	Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00
ZG310-570	2G45	0.50	0.60	0.90	0.04	0.04	Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00
ZG340-640	ZG55	0.60	0.60	0.90	0.04	0.04	Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00

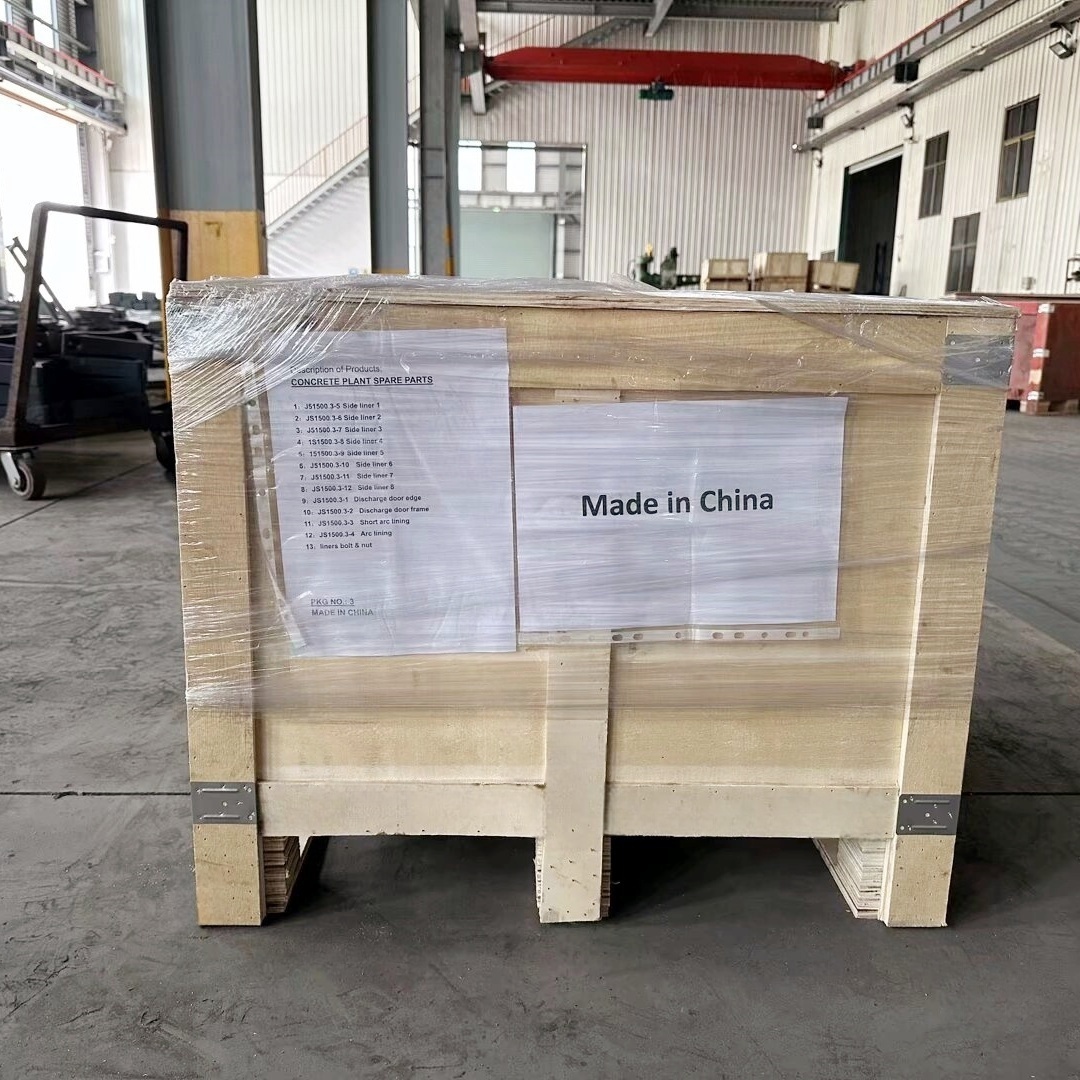

Packaging & Shipment

FAQ

1.Q: Could you introduce your company’s business nature and production qualifications?
A: We are a professional manufacturer specializing in wear parts production with over two decades of industry expertise.

2.Q: How can we arrange a visit to your production facility?
A: We warmly welcome visits to our manufacturing base at any time. Our sales team will tailor a dedicated inspection itinerary for you.

3.Q: What core material systems do you utilize?
A: We employ engineered materials such as high-chromium cast iron, ductile cast iron, cast steel, and alloy steel. Material selection is scientifically optimized based on specific operational conditions and performance requirements.

4.Q: What payment methods do you support?
A: We accept international trade settlement methods including T/T and L/C. Flexible payment terms can be negotiated for long-term strategic partners.

5.Q: Do you offer customized branding services?
A: Yes, we provide end-to-end customization solutions covering industrial design, mold development, and product marking.

6.Q: How does your quality assurance system operate?
A: Our facility features professional-grade inspection equipment and a three-stage verification protocol: Incoming material inspection; Batch-specific process quality validation; Pre-shipment certification.
