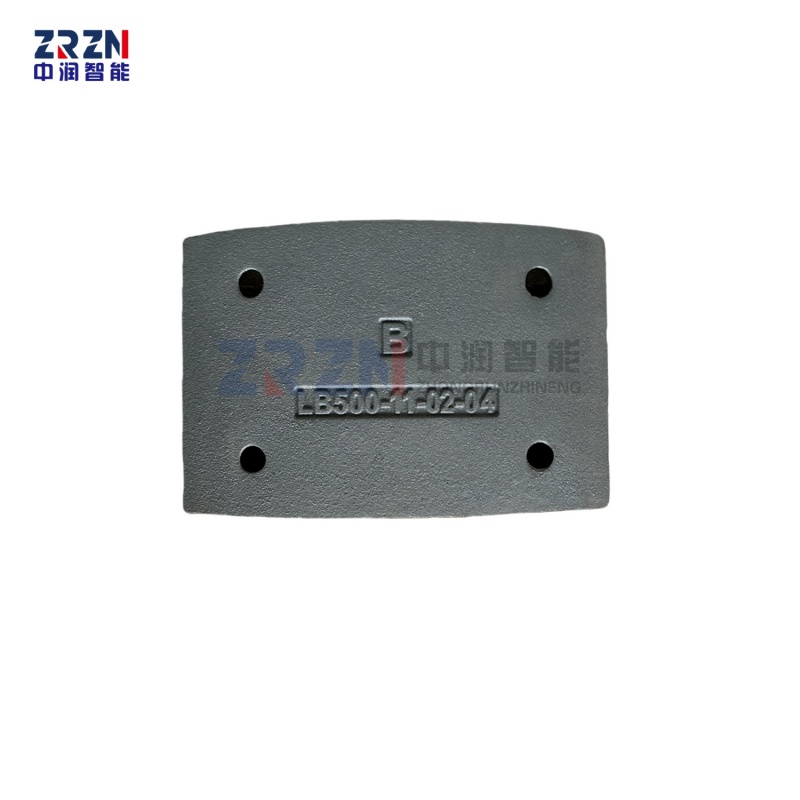

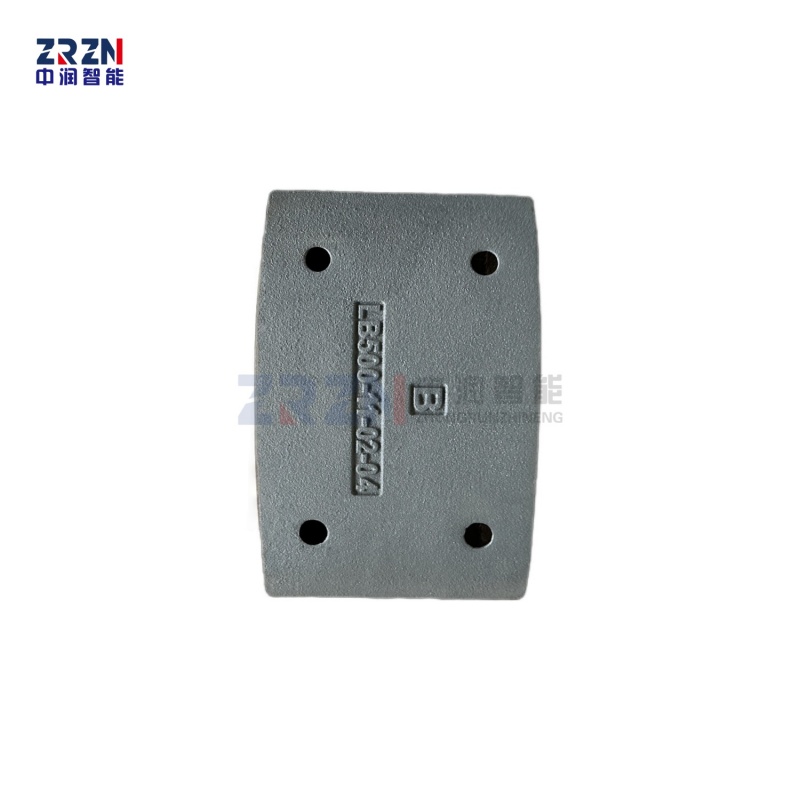

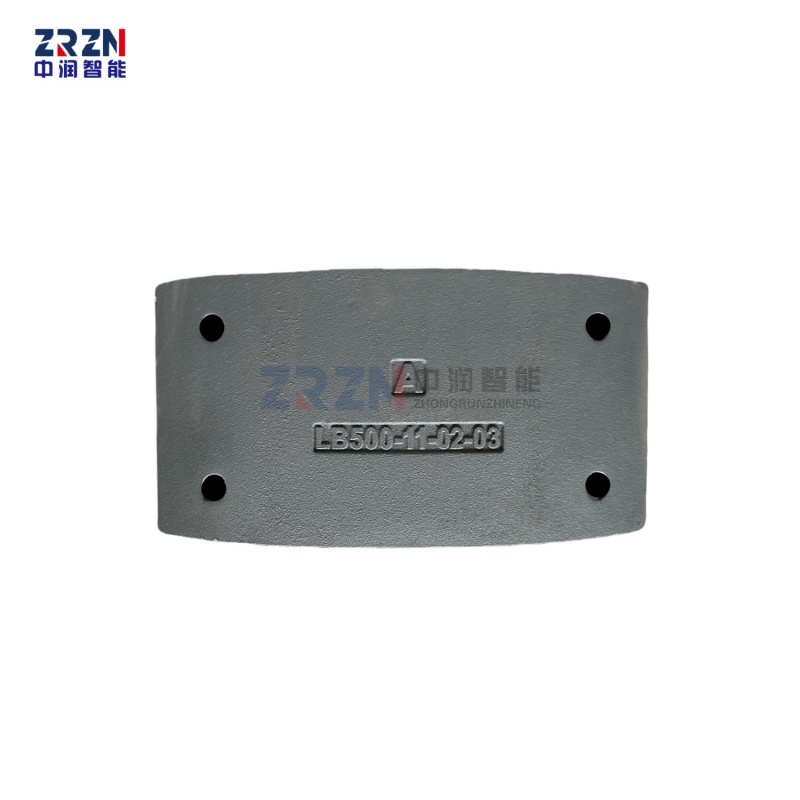

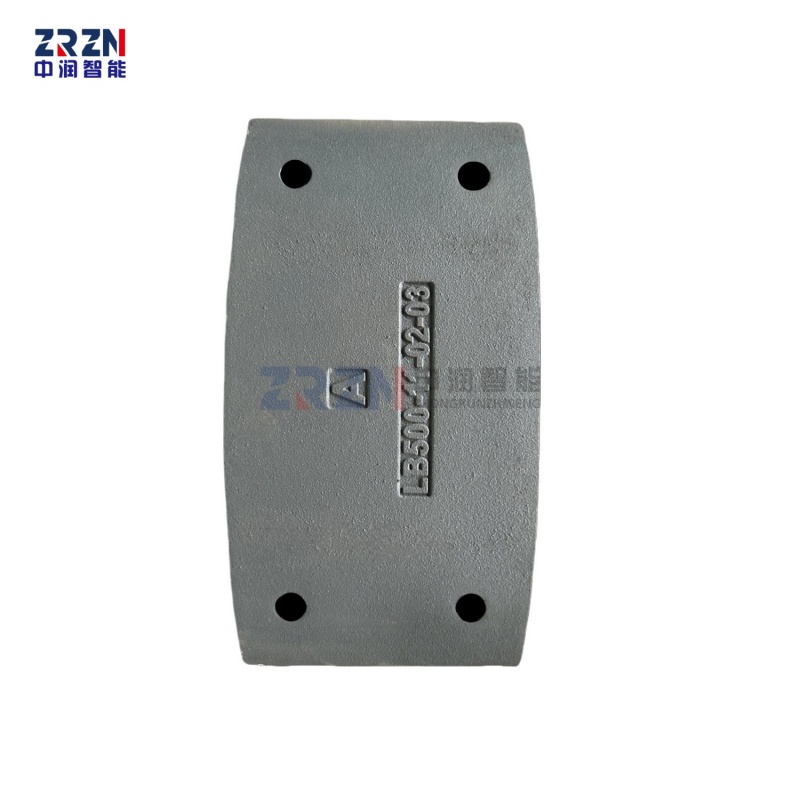

LBQ500 Concrete Mixer Arc Liner | Wear-Resistant Alloy Plate

Protect the structural integrity and extend the operational life of your LBQ500 series concrete mixer with our precision-engineered Arc Liner. This curved wear plate is designed to form a durable, sacrificial barrier between the abrasive concrete mix and the critical mixing drum shell. At Zhongrun Intelligent Equipment, a National High-Tech Enterprise recognized for its leadership in wear-resistant alloy castings, we understand that the mixer drum liner is the first line of defense against costly structural wear. Our arc liner is the product of decades of metallurgical refinement, specifically contoured to match the inner curvature of the LBQ500 mixing chamber, ensuring seamless installation and comprehensive protection.

The manufacturing of this arc liner leverages our advanced lost foam casting line, a process that is uniquely suited to produce the precise, curved geometry required for a perfect drum fit. This technology delivers exceptional dimensional accuracy and a smooth, consistent surface finish, which are critical for minimizing material adhesion and promoting efficient material flow during the mixing cycle. Following the initial casting, the liner’s structural density and dimensional stability are further assured by our high-pressure vertical flaskless molding capabilities. This combination of advanced production methods guarantees that each liner is not only an exact physical match for your Lude mixer but also possesses a uniform, defect-free structure that can withstand continuous impact and abrasion.

Superior wear life is achieved through meticulous material control and advanced heat treatment. We utilize medium frequency induction furnaces to achieve a precisely controlled, high-purity melt of a proprietary high-chromium alloy. This exact Material Composition is the blueprint for developing a refined Metallographic Structure through our proprietary, multi-stage heat treatment process. This engineered microstructure delivers an ideal synergy of mechanical properties: exceptional surface Hardness (HRC 58-62) to resist the abrasive action of aggregates, combined with high Impact Toughness and Flexural Strength to absorb the shock of charging materials and resist cracking under cyclical loading. Manufactured under our ISO 9001-certified quality system and validated in our in-house laboratory, each Lude LBQ500 arc liner is a reliable, traceable investment. By choosing our liner, you directly reduce maintenance frequency, lower your total cost of ownership, and safeguard your mixer drum from premature wear and failure.

• • Dynamic Performance Engineering: Designed for the dual demands of abrasion resistance and structural load-bearing; blades are optimized for wear, while arms are engineered for high flexural strength and fatigue resistance.

  • Precision Casting: Arms are cast via the lost foam process for complex, efficient shapes and smooth surfaces. Blades are produced using high-pressure, vertical flaskless molding for maximum dimensional accuracy and structural density.
  • Proprietary Balanced Heat Treatment: Our advanced thermal processing creates a differentiated microstructure: a tough, shock-absorbing core seamlessly integrated with an ultra-hard, wear-resistant surface layer for extended service life.



• • Full Laboratory Validation & Certification: Each set is backed by material test certificates from our in-house lab, confirming alloy composition, hardness profile (HRC), and key mechanical properties like impact toughness.

  • Designed for Seamless OEM Replacement: Manufactured to exact LBQ1500 specifications for perfect fit and balance, ensuring easy installation and immediate restoration of optimal mixing performance without downtime for modifications.

  • Smart Manufacturing Traceability & Support: Produced within a digitally integrated system ensuring batch-to-batch consistency, and supported by technical expertise drawn from our industry-university R&D collaborations for ongoing performance optimization.

1、Vertical Flaskless Molding Line: Enables high-speed, large-batch production with minimal dimensional variance.

1.Q: Could you introduce your company’s business nature and production qualifications?
A: We are a professional manufacturer specializing in wear parts production with over two decades of industry expertise.

2.Q: How can we arrange a visit to your production facility?
A: We warmly welcome visits to our manufacturing base at any time. Our sales team will tailor a dedicated inspection itinerary for you.

3.Q: What core material systems do you utilize?
A: We employ engineered materials such as high-chromium cast iron, ductile cast iron, cast steel, and alloy steel. Material selection is scientifically optimized based on specific operational conditions and performance requirements.

4.Q: What payment methods do you support?
A: We accept international trade settlement methods including T/T and L/C. Flexible payment terms can be negotiated for long-term strategic partners.

5.Q: Do you offer customized branding services?
A: Yes, we provide end-to-end customization solutions covering industrial design, mold development, and product marking.

6.Q: How does your quality assurance system operate?
A: Our facility features professional-grade inspection equipment and a three-stage verification protocol: Incoming material inspection; Batch-specific process quality validation; Pre-shipment certification.
