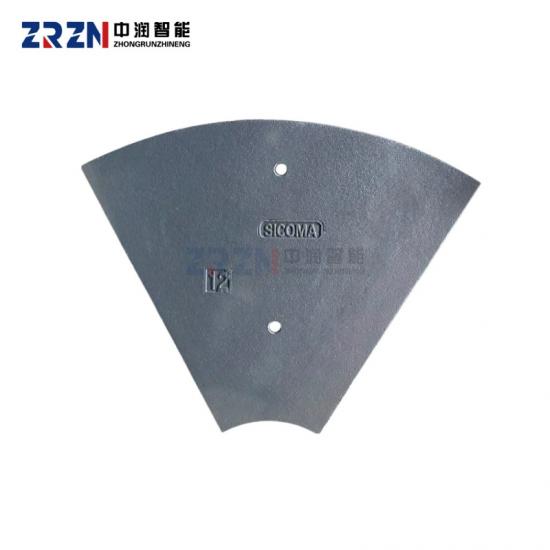

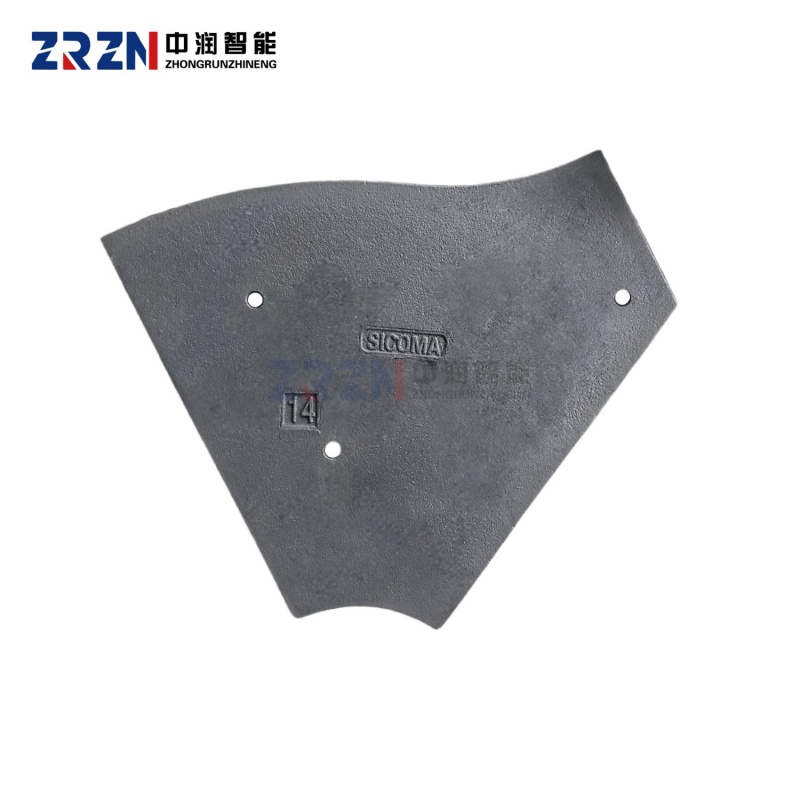

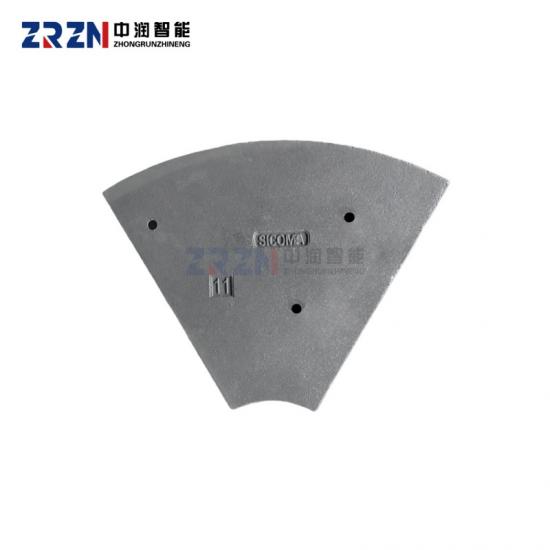

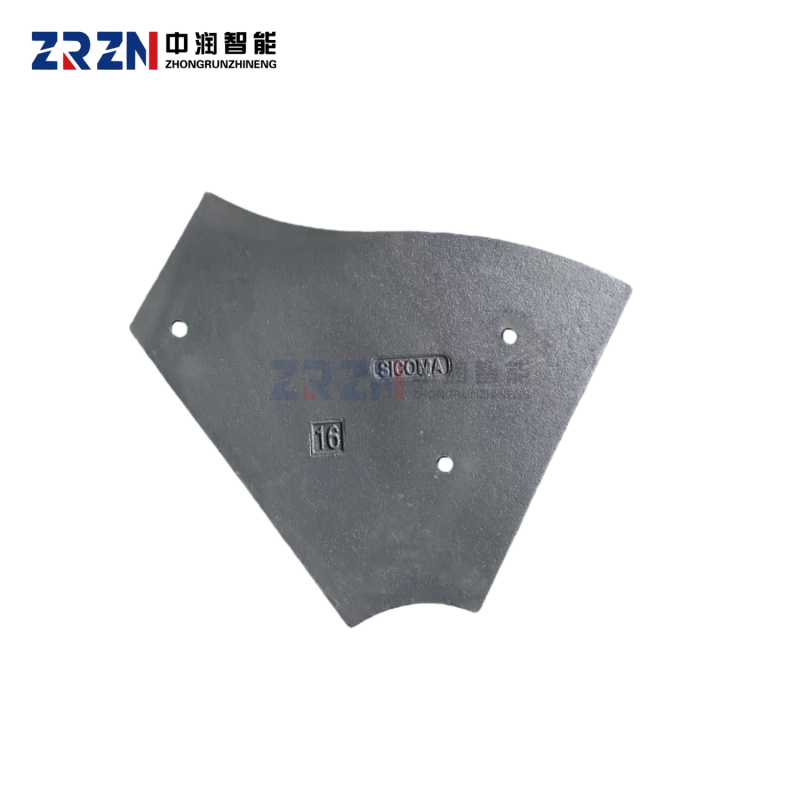

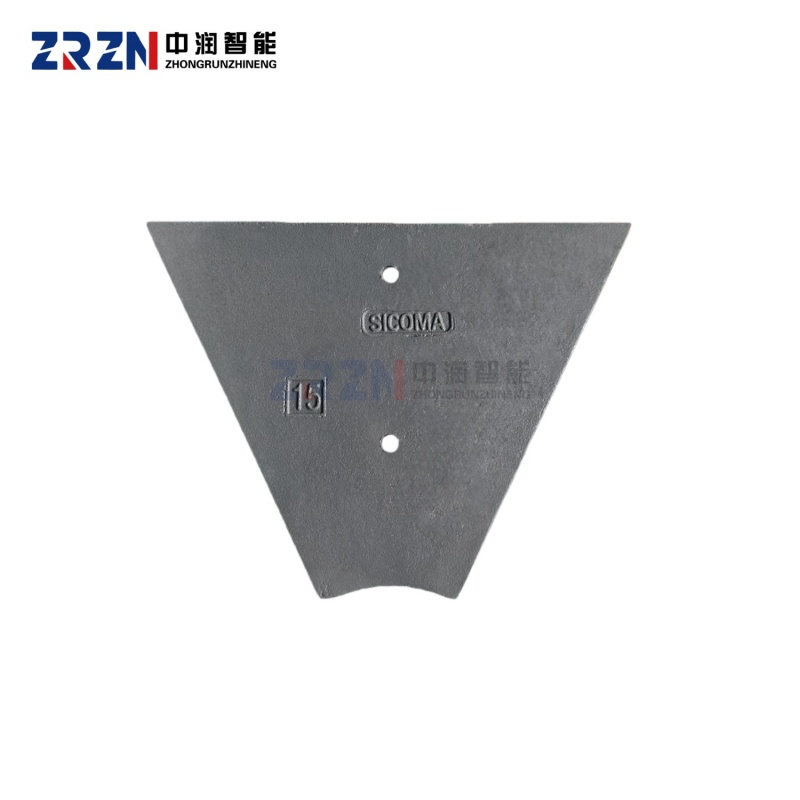

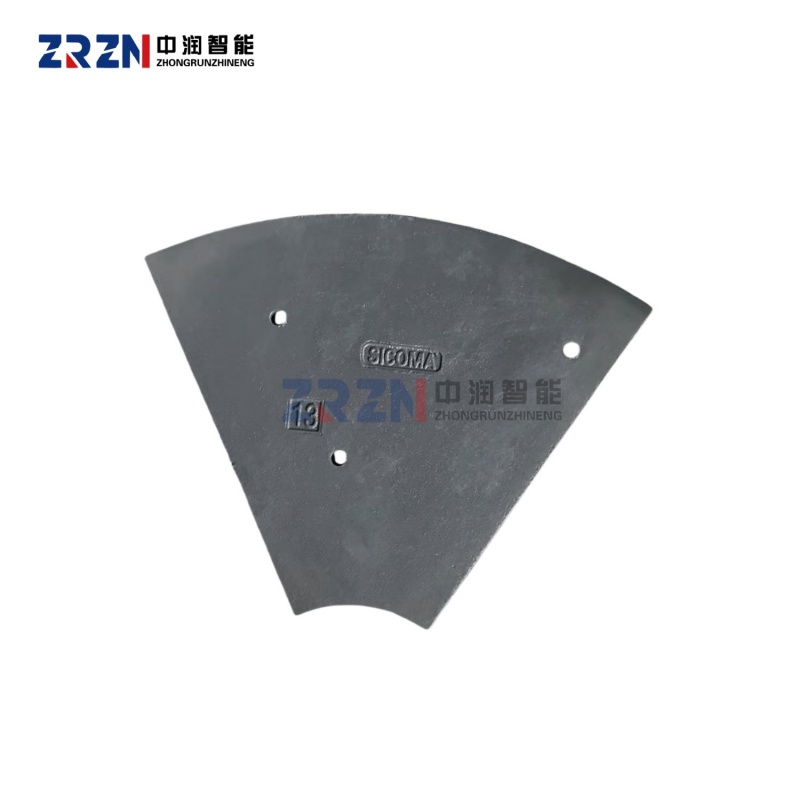

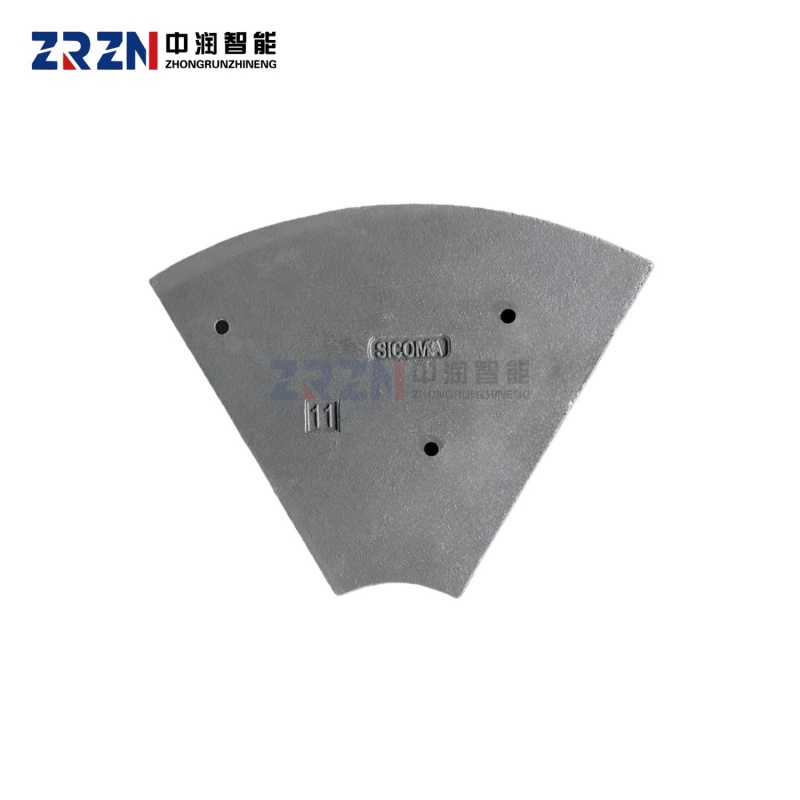

Engineered specifically for SICOMA MSO series twin-shaft concrete mixers, our enhanced flow liner combines advanced hydrodynamic principles with superior wear resistance to optimize mixing efficiency in small to medium batch operations (0.5m³ - 1.5m³ capacities).
Brand:
SICOMAOrder(MOQ):
1000kgGoods Stock:
1000Payment:
T/T, L/C, Paypal, Western UnionMarket Price:
$2Price:
$22/1000kgPrice Range:
1000 - 5000/$21Price Range:
5000 - 10000/$20Product Origin:
AnhuiColor:
CustomizedShipping Port:
ShanghaiLead Time:
15-30days| Description： |
Engineered specifically for SICOMA MSO series twin-shaft concrete mixers, our enhanced flow liner combines advanced hydrodynamic principles with superior wear resistance to optimize mixing efficiency in small to medium batch operations (0.5m³ - 1.5m³ capacities). Manufactured through ISO 9001-certified processes, each liner is precision-cast using lost-foam casting (EPC) and vertical flaskless molding technology, achieving exceptional material density of 99.8% that eliminates micro-porosity and ensures structural homogeneity under extreme abrasive conditions. This manufacturing integrity guarantees consistent performance across various concrete types including ready-mix, precast, and fiber-reinforced concrete, extending service life by over 50% compared to conventional liners.
The liner features our proprietary high-chromium composite alloy with 29-32% chromium content enhanced with vanadium and tungsten additives, creating a dense carbide network with optimized surface hardness of 59-64 HRC. Refined in medium-frequency induction furnaces, this specialized metallurgical structure (M7C3+MC carbides in tempered martensite) provides 4.7x better abrasion resistance than standard components, with independent verification confirming performance exceeding 320,000 cubic meters of concrete mixing. This durability is further validated by tensile strength of 485 N/mm² and impact toughness of ≥8.5 J/cm², ensuring reliable operation under heavy impact loads and thermal cycling.
Our digital engineering process incorporates computational fluid dynamics (CFD) to optimize the liner's geometric profile, reducing material buildup by 62% while improving mixing homogeneity. The specialized helical-inspired surface pattern enhances material flow dynamics, lowering power consumption by 20% through reduced friction resistance. Each liner is CNC-machined to ±0.12mm tolerance, ensuring perfect compatibility with SICOMA MSO mixer configurations and facilitating seamless installation. Backed by comprehensive technical support and digital lifecycle management tools, these liners represent the forefront of wear solution technology for concrete producers seeking to maximize operational efficiency and minimize total cost of ownership.
| Features and Advantages |
Advanced Chromium Alloy: High-chromium composition with molybdenum/vanadium additives ensures 57-65 HRC hardness and superior abrasion resistance.
Extended Service Life: Independently verified to withstand over 300,000 cubic meters of concrete mixing, offering 40% longer lifespan than standard blades.
Anti-Adhesion Surface Design: The proprietary wave-pattern surface effectively reduces asphalt material buildup by over 60%, ensuring consistent mixing efficiency and reducing cleaning effort.
Comprehensive Certification: ISO 9001, ISO 45001, ISO14001 certified manufacturing with complete material traceability and technical documentation support.
| Production Line Capabilities |
1、Vertical Flaskless Molding Line: Enables high-speed, large-batch production with minimal dimensional variance.
2、Lost Foam Casting: Delivers complex geometries and smooth surfaces for precise fitment.
3、Medium-Frequency Induction Furnace: Ensures uniform melting of high-chromium alloys (Cr content 15-32%).
| Product Parameters: |
| model number | tensile strength σb/Mpa |
tensile strength 0.2/Mpa |
elongation(%) | Fyi | ||
| new model number | equal old model number | minimum value | minimum value | minimum value | HBS Brinell hardness(BHS) |
main metallographic structure |
| QT400-18 | QT40-17 | 400 | 250 | 18 | 130-180 | ferritle |
| QT400-15 | - | 400 | 250 | 15 | 130-180 | ferritle |
| QT450-10 | QT42-10 | 450 | 310 | 10 | 160-210 | ferritle |
| QT500-7 | QT50-5 | 500 | 320 | 7 | 170-230 | ferritle+pearlite |
| QT600-3 | QT60-2 | 600 | 370 | 3 | 190-270 | pearlite+ferritle |
| QT700-2 | QT70-2 | 700 | 420 | 2 | 225-305 | pearlite |
| QT800-2 | QT80-2 | 800 | 480 | 2 | 245-335 | pearliteor tempered structure |
| QT900-2 | - | 900 | 600 | 2 | 280-360 | bainite or tempered martensite |
| Chemical composition(Mass fraction)(%) | |||||||||
| C | Si | Mn | Cr | Mo | Ni | Cu | S | P | |
| KmTBN14Cr2-DT | 2.4~3.0 | ≤0.8 | ≤2.0 | 1.5-3.0 | ≤1.0 | 3.3~5.0 | - | ≤0.10 | ≤0.15 |
| KmTBN14Cr2-GT | 3.0~3.6 | ≤0.8 | ≤2.0 | 1.5-3.0 | ≤1.0 | 3.3~5.0 | - | ≤0.15 | ≤0.15 |
| KmTBCr9Ni5 | 2.5~3.6 | ≤2.0 | ≤2.0 | 7.0-11.0 | ≤1.0 | 4.5~7.0 | - | ≤0.15 | ≤0.15 |
| KmTBCr2 | 2.1~3.6 | ≤12 | ≤2.0 | 1.5~3.0 | ≤1.0 | ≤1.0 | ≤1.2 | ≤0.10 | ≤0.15 |
| KmTBCr8 | 2.1~3.2 | 1.5~2.2 | ≤2.0 | 7.0~11,0 | ≤1.5 | ≤1.0 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmlBCr12 | 2.0~3.3 | ≤1.5 | ≤2.0 | 11.0~14.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr15Mo | 2.0~3.3 | ≤1.2 | ≤2.0 | 14.0~18.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr20Mo | 2.0~3.3 | ≤1.2 | ≤2.0 | 18.0~23.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr26 | 2.0~3.3 | ≤1.2 | ≤2.0 | 23.0~30.0 | ≤3.0 | ≤2.5 | ≤2.0 | ≤0.06 | ≤0.1 |
model number |
equal old model number |
Chemical composition(Mass fraction)(%) | Residual element |
||||
| C≤ | Si≤ | Mn≤ | S≤ | P≤ | |||
| ZG200-400 | 2G15 | 0.20 | 0.50 | 0.80 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG230-450 | ZG25 | 0.30 | 0.50 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG270-500 | ZG35 | 0.40 | 0.50 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG310-570 | 2G45 | 0.50 | 0.60 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG340-640 | ZG55 | 0.60 | 0.60 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| Packaging & Shipment |
| FAQ |
1.Q: Could you introduce your company’s business nature and production qualifications?
A: A: We are a professional manufacturer specializing in high-wear-resistant alloy components. Our in-house casting and machining facilities ensure full control over quality, cost, and lead time.
2.Q: How can I place an order?
A: Simply share your requirements via email or through our online system. We’ll promptly prepare a proforma invoice (PI) with detailed pricing and delivery terms for your confirmation.
3.Q: What core material systems do you utilize?
A: We employ engineered materials such as high-chromium cast iron, ductile cast iron, cast steel, and alloy steel. Material selection is scientifically optimized based on specific operational conditions and performance requirements.
4.Q: What payment methods do you support?
A: We accept international trade settlement methods including T/T and L/C. Flexible payment terms can be negotiated for long-term strategic partners.
5.Q: Do you offer customized branding services?
A: Yes, we provide end-to-end customization solutions covering industrial design, mold development, and product marking.
6.Q: How does your quality assurance system operate?
A: Our facility features professional-grade inspection equipment and a three-stage verification protocol: Incoming material inspection; Batch-specific process quality validation; Pre-shipment certification.
