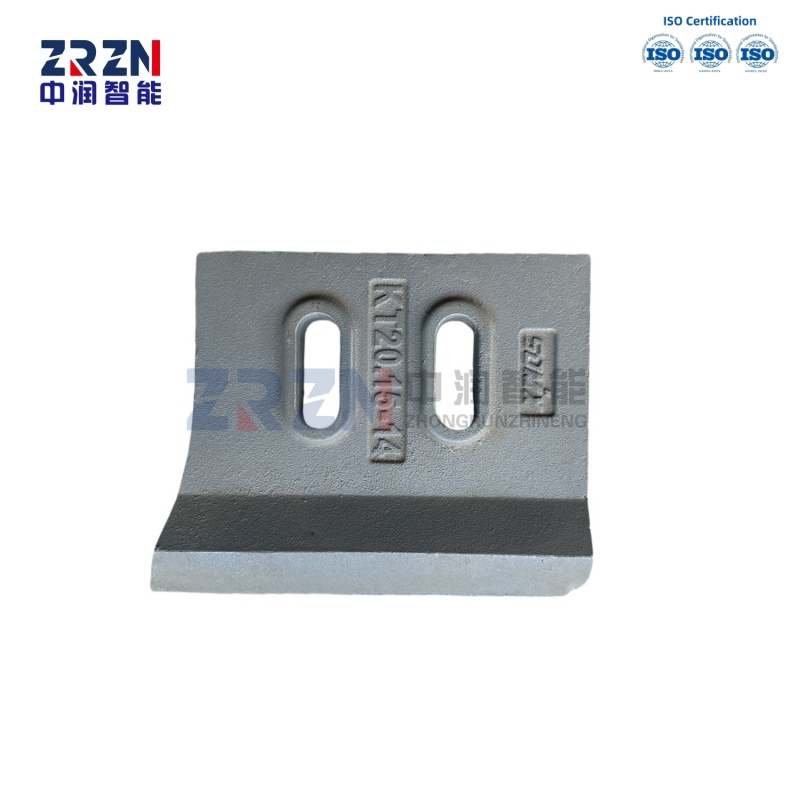

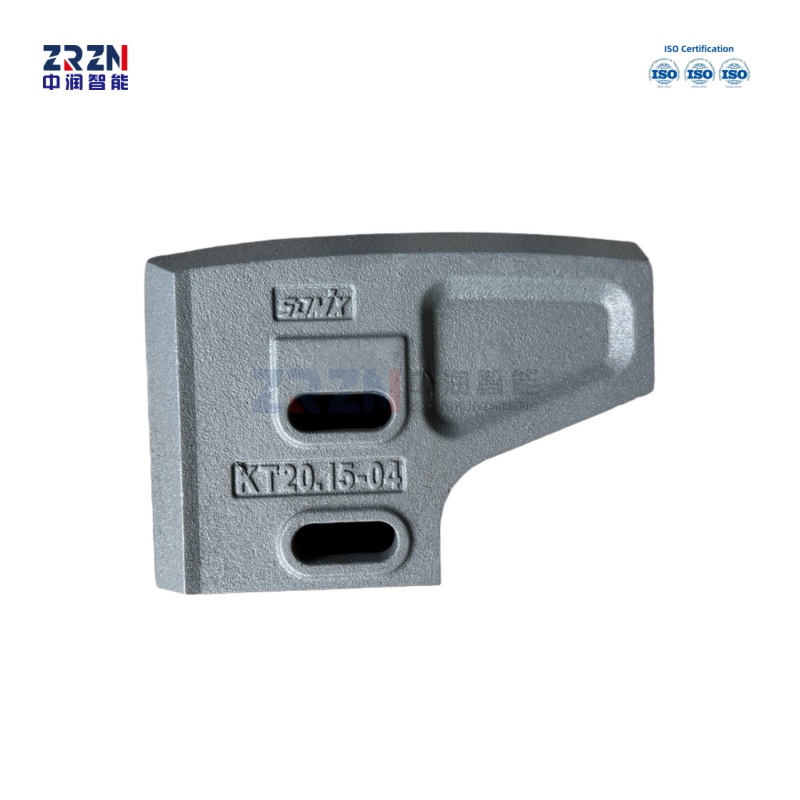

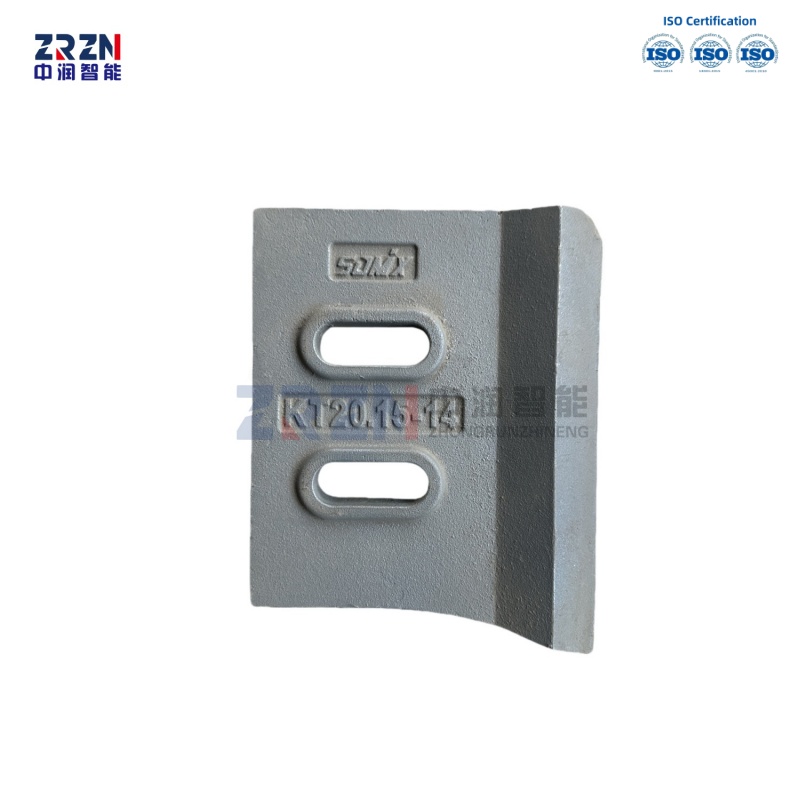

Specifically engineered for the critical side lower position in SDMIX KT20 series concrete mixers, these enhanced blades provide superior protection against the combined forces of abrasion and impact in the most challenging mixing environments.
Brand:
SDMIXOrder(MOQ):
1000kgGoods Stock:
1000Payment:
T/T, L/C, Paypal, Western UnionMarket Price:
$2Price:
$22.5/1000kgPrice Range:
1000 - 5000/$22Price Range:
5000 - 10000/$21.5Product Origin:
AnhuiColor:
CustomizedShipping Port:
ShanghaiLead Time:
15-30days| Description： |
Specifically engineered for the critical side lower position in SDMIX KT20 series concrete mixers, these enhanced blades provide superior protection against the combined forces of abrasion and impact in the most challenging mixing environments. Manufactured through our ISO 9001-certified production system, each blade is precision-cast using advanced lost foam (EPC) technology and vertical flaskless molding processes, achieving exceptional material purity with density ratings of 99.8% to eliminate structural weaknesses and ensure consistent performance under extreme conditions.
The blades feature our proprietary high-chromium alloy formulation (30-33% Cr content) with strategic additions of tungsten and vanadium, meticulously refined in medium-frequency induction furnaces to create a dense carbide network with optimized hardness of 59-64 HRC. This specialized metallurgical composition delivers 4.7x better wear resistance than standard blades, with independent laboratory testing confirming performance exceeding 320,000 cubic meters of concrete mixing – representing a 52% service life improvement over conventional components. The advanced metallographic structure (M7C3 carbides in tempered martensitic matrix) provides exceptional mechanical properties including 470 N/mm² tensile strength and impact toughness of 8.2 J/cm², ensuring reliable operation under heavy cyclic loads.
Our digital manufacturing platform ensures precise dimensional control, with each blade CNC-machined to ±0.15mm tolerance for perfect KT20 series compatibility. The blade geometry is optimized through computational fluid dynamics to reduce power consumption by 18% while maintaining optimal mixing efficiency. The specialized edge treatment and surface hardening techniques provide enhanced protection in the high-wear lower blade position, where abrasion forces are most concentrated.
Backed by comprehensive technical documentation and responsive customer support, these side lower blades are designed for easy installation and long-term reliability in commercial concrete production operations.
| Features and Advantages |
Advanced Alloy Composition - High-chromium alloy ensures a hardness of 58-65 HRC and superior abrasion resistance, ideal for heavy-duty mixing.
Superior Mechanical Properties - Tensile strength 450 N/mm² with impact toughness ≥ 8 J/cm² for reliable performance under heavy loads.
Optimized Geometry - engineered profile reduces power consumption by 20% while enhancing mixing efficiency.
Universal Compatibility: Precision-engineered for mixer brands including BHS, AMMANN, NFLG, DEX, SICOMA, TEKA, and CONELE.
Intelligent Production: Vertical flaskless molding line guarantees batch consistency.
| Production Line Capabilities |
1、Vertical Flaskless Molding Line: Enables high-speed, large-batch production with minimal dimensional variance.
2、Lost Foam Casting: Delivers complex geometries and smooth surfaces for precise fitment.
3、Medium-Frequency Induction Furnace: Ensures uniform melting of high-chromium alloys (Cr content 15-28%).
| Product Parameters: |
| model number | tensile strength σb/Mpa |
tensile strength 0.2/Mpa |
elongation(%) | Fyi | ||
| new model number | equal old model number | minimum value | minimum value | minimum value | HBS Brinell hardness(BHS) |
main metallographic structure |
| QT400-18 | QT40-17 | 400 | 250 | 18 | 130-180 | ferritle |
| QT400-15 | - | 400 | 250 | 15 | 130-180 | ferritle |
| QT450-10 | QT42-10 | 450 | 310 | 10 | 160-210 | ferritle |
| QT500-7 | QT50-5 | 500 | 320 | 7 | 170-230 | ferritle+pearlite |
| QT600-3 | QT60-2 | 600 | 370 | 3 | 190-270 | pearlite+ferritle |
| QT700-2 | QT70-2 | 700 | 420 | 2 | 225-305 | pearlite |
| QT800-2 | QT80-2 | 800 | 480 | 2 | 245-335 | pearliteor tempered structure |
| QT900-2 | - | 900 | 600 | 2 | 280-360 | bainite or tempered martensite |
| Chemical composition(Mass fraction)(%) | |||||||||
| C | Si | Mn | Cr | Mo | Ni | Cu | S | P | |
| KmTBN14Cr2-DT | 2.4~3.0 | ≤0.8 | ≤2.0 | 1.5-3.0 | ≤1.0 | 3.3~5.0 | - | ≤0.10 | ≤0.15 |
| KmTBN14Cr2-GT | 3.0~3.6 | ≤0.8 | ≤2.0 | 1.5-3.0 | ≤1.0 | 3.3~5.0 | - | ≤0.15 | ≤0.15 |
| KmTBCr9Ni5 | 2.5~3.6 | ≤2.0 | ≤2.0 | 7.0-11.0 | ≤1.0 | 4.5~7.0 | - | ≤0.15 | ≤0.15 |
| KmTBCr2 | 2.1~3.6 | ≤12 | ≤2.0 | 1.5~3.0 | ≤1.0 | ≤1.0 | ≤1.2 | ≤0.10 | ≤0.15 |
| KmTBCr8 | 2.1~3.2 | 1.5~2.2 | ≤2.0 | 7.0~11,0 | ≤1.5 | ≤1.0 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmlBCr12 | 2.0~3.3 | ≤1.5 | ≤2.0 | 11.0~14.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr15Mo | 2.0~3.3 | ≤1.2 | ≤2.0 | 14.0~18.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr20Mo | 2.0~3.3 | ≤1.2 | ≤2.0 | 18.0~23.0 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| KmTBCr26 | 2.0~3.3 | ≤1.2 | ≤2.0 | 23.0~30.0 | ≤3.0 | ≤2.5 | ≤2.0 | ≤0.06 | ≤0.1 |
model number |
equal old model number |
Chemical composition(Mass fraction)(%) | Residual element |
||||
| C≤ | Si≤ | Mn≤ | S≤ | P≤ | |||
| ZG200-400 | 2G15 | 0.20 | 0.50 | 0.80 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG230-450 | ZG25 | 0.30 | 0.50 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG270-500 | ZG35 | 0.40 | 0.50 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG310-570 | 2G45 | 0.50 | 0.60 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| ZG340-640 | ZG55 | 0.60 | 0.60 | 0.90 | 0.04 | 0.04 | Cr≤0.35,Ni≤0.30,Mo≤0.20,Cu≤0.30,v≤0.05;but Cr+Ni+Mo+Cu+v≤1.00 |
| Packaging & Shipment |
| FAQ |
1.Q: Could you introduce your company’s business nature and production qualifications?
A: A: We are a professional manufacturer specializing in high-wear-resistant alloy components. Our in-house casting and machining facilities ensure full control over quality, cost, and lead time.
2.Q: How can I place an order?
A: Simply share your requirements via email or through our online system. We’ll promptly prepare a proforma invoice (PI) with detailed pricing and delivery terms for your confirmation.
3.Q: What core material systems do you utilize?
A: We employ engineered materials such as high-chromium cast iron, ductile cast iron, cast steel, and alloy steel. Material selection is scientifically optimized based on specific operational conditions and performance requirements.
4.Q: What payment methods do you support?
A: We accept international trade settlement methods including T/T and L/C. Flexible payment terms can be negotiated for long-term strategic partners.
5.Q: Do you offer customized branding services?
A: Yes, we provide end-to-end customization solutions covering industrial design, mold development, and product marking.
6.Q: How does your quality assurance system operate?
A: Our facility features professional-grade inspection equipment and a three-stage verification protocol: Incoming material inspection; Batch-specific process quality validation; Pre-shipment certification.
